ABB 1SDA072785R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

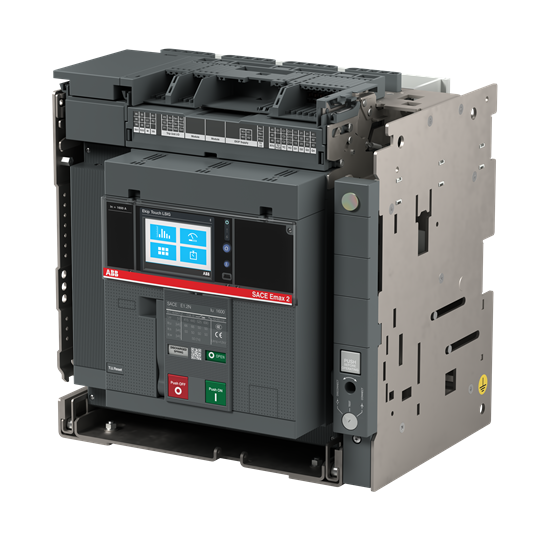

MOVING PART FOR C.BREAKER SACE EMAX2 E1.2N 1000 FOUR-POLE WITH SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSI R 1000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE1.2N 1000 Ekip Touch LSI 4p WMP
ABB 1SDA072785R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0065
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 8000 cycleUe = 500 ... 690 V 8000 cycle30 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 156 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1000 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 66 kA(230 V AC) 66 kA(380 V AC) 66 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 50 kA(660 V AC) 50 kA(690 V AC) 50 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 50 kAfor 3 s 30 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 50 kA(525 V AC) 50 kA(690 V AC) 50 kA
- Rated Uninterrupted Current (Iu)
- 1000 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Touch LSI
- Release Type
- EL
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- E1.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 76.4 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2360
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 271 mm
- Product Net Height
- 363.5 mm
- Product Net Weight
- 20 kg
- Product Net Width
- 348 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1900 9AKK108468A3028
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- eb2fbb54-cdad-4a75-a43b-ad2fbaee8304 Italy (IT)
- Simplified SCIP
- d0e5b50f-74ef-4af5-b904-fcf58ea8613b Sweden (SE)c946881b-efda-48b0-b65b-b0bb7b3970e6 Belgium (BE)dfdc8af1-6b08-4f65-a2bc-6848e7531609 Spain (ES)6bf1f26a-abe3-451f-aab5-638a0f562b1f France (FR)826c6292-b48b-4439-9215-83a7482c96e8 Hungary (HU)a29e6223-1358-48bc-863c-29d51f329ad8 Norway (NO)87dfc689-722e-4f35-9b2a-f37cc92b628e Hungary (HU)cb469ed7-f28d-4d1d-a3ed-75c10acc746e Poland (PL)54c940fa-dc66-4873-95ea-1a2f85c310b2 France (FR)93706396-7c53-4eaf-a8a2-d72f6c9d052e Germany (DE)80f6e01c-e3c3-4c64-9c6f-e8e60c432cf1 Croatia (HR)6bb852d8-e4ff-46a9-ad07-74d2d9899ba0 Denmark (DK)1989e5c1-0ca9-48f8-8803-761ef4668c43 Germany (DE)9dcd1e31-c962-4e6b-b854-2a1ba7981373 Germany (DE)c2e41493-ff16-4b28-b1cd-4071126a9446 Finland (FI)7183a817-6f0d-406c-b104-2ae06e900642 Germany (DE)d82bd8e1-35be-4bd4-9059-72010ac3d360 Belgium (BE)66589042-9bdf-4e70-b90c-0ae0d8c8ceae Sweden (SE)d23f8f12-ac63-4da9-a727-6bbffe1e689c Netherlands (NL)f9cb7ef5-d2f0-44a5-80c2-bda21cd7acbc Estonia (EE)12174979-887c-49fe-a4a9-80e7ab3d73bf Greece (GR)e5ac665b-47f8-4af2-a28d-74798fd0cd44 Poland (PL)814299a7-49f9-41fd-a221-d9696be1ea16 Poland (PL)183b7ea2-89da-452b-a82d-9b309a29a0aa Czech Republic (CZ)b52a4c52-6101-4b84-902f-491616fde2f2 Portugal (PT)ba85a38f-ecfe-4b82-8cbc-cda67744c5df Bulgaria (BG)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZANQEGAE000A000000XX
