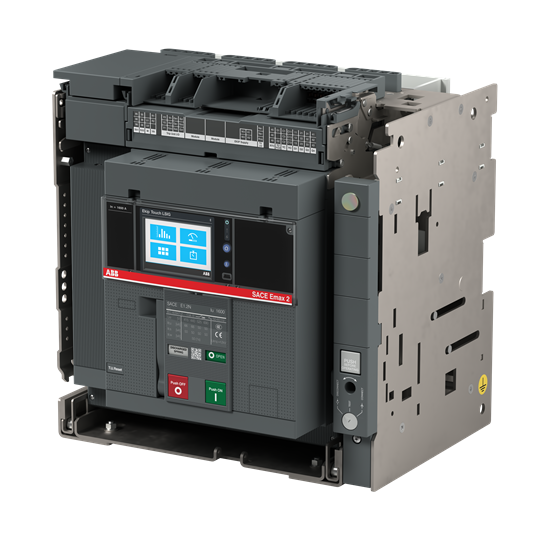

ABB 1SDA072726R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E1.2B 800 FOUR-POLE WITH SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSIG R 800 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE1.2B 800 Ekip Touch LSIG 4p WMP
ABB 1SDA072726R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0065
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 8000 cycleUe = 500 ... 690 V 8000 cycle30 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 100 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 800 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 42 kA(230 V AC) 42 kA(380 V AC) 42 kA(400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA(500 V AC) 42 kA(660 V AC) 42 kA(690 V AC) 42 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 42 kAfor 3 s 24 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA(500 V AC) 42 kA(525 V AC) 42 kA(690 V AC) 42 kA
- Rated Uninterrupted Current (Iu)
- 800 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Touch LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- B
- Standards
- IEC
- Sub-type
- E1.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 76.4 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2360
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 271 mm
- Product Net Height
- 363.5 mm
- Product Net Weight
- 20 kg
- Product Net Width
- 348 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1900 9AKK108468A3028
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- ad8827a8-65ac-4fc9-8abd-52a35969e960 Italy (IT)
- Simplified SCIP
- dd0b222d-6d91-4314-bdfa-e87f42cd2731 Portugal (PT)58fb8374-f6f1-43de-b6c6-8aca9ad5593b Hungary (HU)38aca2b6-5b2e-4fb1-8b34-2eaf71602620 Spain (ES)c9aaeb69-878a-4eb2-b2a8-b3c3092ab08f Belgium (BE)7520c787-acd2-4869-b31b-dc8e59aa0134 France (FR)6c065965-0a28-492f-b489-1320259c906e Hungary (HU)1ffb08b3-1607-4826-9994-30b113a64a56 Norway (NO)a95b3879-eeaf-4a42-895f-25c4fba5a2e0 Poland (PL)9ac0b07f-e114-40a4-b7bb-302e7711dd0a France (FR)136b4340-67eb-4ce2-b329-b463bf555142 Croatia (HR)0be7ac45-0dad-4296-8055-2e71cf5855ae Germany (DE)91e45e53-2c21-4220-b185-7710bb163403 Greece (GR)b5e48a8b-003e-439d-8b63-aa70f28dde2b Finland (FI)9c8bb218-6626-4a74-ba68-275d9e70d843 Netherlands (NL)1ccce0f3-055b-4e23-bc53-80e2a6b62f88 Estonia (EE)67c743df-7c24-4ab3-ad58-39207ea7e0d7 Denmark (DK)d2a1644a-6cce-426d-8c61-6ed7d618c5ce Germany (DE)4bce6114-9de2-471d-8510-98d6377ea418 Germany (DE)b5c26fe7-55e3-44e2-ac22-9f9e3d83a3bd Belgium (BE)1dcd7a7e-b9f4-444b-ae7a-30aca83fc08a Germany (DE)525807b7-154e-4cbd-8f31-72e53e2435f4 Sweden (SE)42255610-196c-4e63-942b-fbd35a2c2448 Sweden (SE)e54f5930-eac1-4e26-acbe-ea627bf1b682 Bulgaria (BG)66ea3c79-7d75-4762-b494-16e13d55f5d6 Poland (PL)33ef460a-37c1-461f-bb3f-1c8f8151744b Poland (PL)5d9da458-5901-4a51-8b1b-c4a4462b811d Czech Republic (CZ)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZABPEFAF000A000000XX
