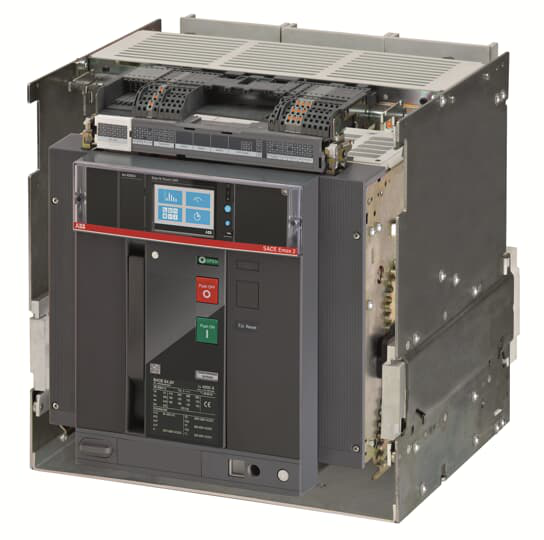

ABB 1SDA072558R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E4.2S 4000 THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSI R 4000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE4.2S 4000 Ekip Hi-Touch LSI 3p WMP
ABB 1SDA072558R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0433
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 5000 cycleUe = 500 ... 690 V 4000 cycle20 cycles per hour
- Mechanical Durability
- 15000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 900 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 4000 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 85 kA(400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 66 kAfor 3 s 66 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA
- Rated Uninterrupted Current (Iu)
- 4000 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Hi-Touch LSI
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- E4.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.3 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2363
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 383 mm
- Product Net Height
- 425 mm
- Product Net Weight
- 60 kg
- Product Net Width
- 425 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1904 9AKK108468A1910
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 0a25f58e-5d0f-4fda-9bd7-4ec9fb9acbca Italy (IT)
- Simplified SCIP
- 612e92ba-ea20-4cbc-b0ac-17fe756cac37 Spain (ES)f6607afd-3f22-4a40-b53f-4a6da3495852 Belgium (BE)da64d76b-5017-4a9a-8e0f-f7fe5d5f56b1 Hungary (HU)1ffbd717-8b48-4002-9271-f1fda89ce5cb France (FR)aa90644a-5277-4ecc-b8a4-80d7c2d272da Sweden (SE)09085056-15fa-468c-8806-02865fe45005 Belgium (BE)e60a908a-97a2-45f7-a369-343a75750ba8 Germany (DE)9bb784fd-ccce-4ed6-8f9e-17411512a54f Germany (DE)12c90b45-9bc2-4927-a1f4-16b4fb64b1cb Denmark (DK)71e911c2-edd3-43cb-a9c9-3a01488cdb33 Croatia (HR)cf14ef69-fe56-4f85-ad57-75cfc5ccce45 Germany (DE)6dea4b17-fcaf-4697-83a7-e5d4b30fc81f Germany (DE)fc915cbe-6326-4d4e-a731-cee20f6c8f18 Netherlands (NL)cac3e01a-8f44-4288-95b3-8d2f507a0206 Finland (FI)e0c350dc-eada-448c-8aa3-cfbf24855d8a Greece (GR)418c1af8-1500-48c5-88ef-38432158e243 Estonia (EE)d363c5b3-bdf8-4919-93bf-c094ac00a547 Norway (NO)ae3c80dc-8ca2-4d9a-a7d6-17f408dab1e8 Poland (PL)457eb8fa-228a-4627-8476-b2fec357ee13 Hungary (HU)57845087-95ed-4cbc-9758-ce30a9e94739 France (FR)ad9cc2d4-24b1-46ac-9024-403d47f736bc Portugal (PT)3db4daa5-856c-4782-8578-637b3108ef09 Sweden (SE)81fb77aa-e4ea-475f-a617-dacd1b851fa0 Bulgaria (BG)1b9a5661-105a-455c-96e2-16536f8f9300 Poland (PL)e599da43-6871-45a8-b27f-8aad78f37f0f Poland (PL)84b1f6bd-ea26-4cb7-a5d8-135219159802 Czech Republic (CZ)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z4SWERAJ200A000000XX
