ABB 1SDA072328R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

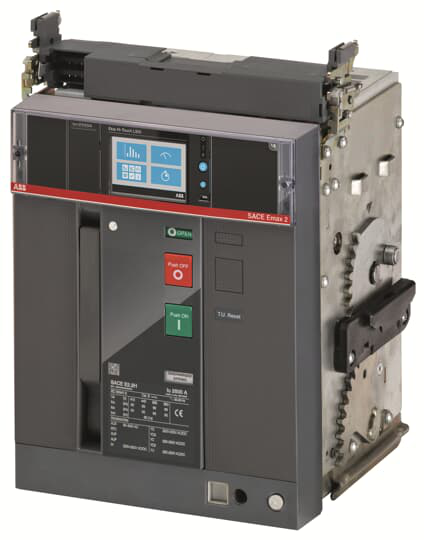

MOVING PART FOR C.BREAKER SACE EMAX2 E2.2H 1250 THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSI R 1250 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2H 1250 Ekip Hi-Touch LSI 3p WMP
ABB 1SDA072328R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0431
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 15000 cycleUe = 500 ... 690 V 15000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 176 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1250 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(660 V AC) 85 kA(690 V AC) 85 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 85 kAfor 3 s 66 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(525 V AC) 85 kA(690 V AC) 85 kA
- Rated Uninterrupted Current (Iu)
- 1250 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Hi-Touch LSI
- Release Type
- EL
- Short-Circuit Performance Level
- H
- Standards
- IEC
- Sub-type
- E2.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 383 mm
- Product Net Height
- 425 mm
- Product Net Weight
- 48 kg
- Product Net Width
- 317 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 5713fa76-a8ee-4d54-97ff-08048da88933 Italy (IT)
- Simplified SCIP
- 71266688-481d-4c90-8043-3ef021d16b9d Norway (NO)93ae49a7-9f90-44ed-8ff5-83db620180c9 France (FR)65641ade-9b7b-4cff-aec2-0b2cc259a2cf Poland (PL)c4e2ceab-ba4f-4cf2-be7e-c998e23ce626 Hungary (HU)562589b6-63e7-432a-bae3-6da5bfcc61e9 Germany (DE)87cc4cd4-cfff-46be-9e70-939cb3eeb267 Germany (DE)54c5a0a2-8ad5-443c-96bb-f9a15bbf0b6a Sweden (SE)d9c719c5-5050-4caf-8c46-8e97c93a6c0d Belgium (BE)40f4b32e-0139-49fd-94f0-90fae631b290 Estonia (EE)240ae0cb-20e3-474c-9153-1cbfe4f196be Greece (GR)34fdac86-bf63-441f-a542-9a937f7e87a4 Finland (FI)485d5485-5bab-4c2f-b043-f40469873e99 Netherlands (NL)763d47e1-6f88-4707-98df-22c5441469d2 France (FR)bc327aeb-c73e-4043-814a-f7ca3200539c Denmark (DK)56c460aa-a35d-4cee-9c51-05f244eadbb7 Germany (DE)a686f81f-177a-4bce-9526-2a07cd18a117 Germany (DE)c09e5425-a1e0-473e-b20d-e43c479925a9 Croatia (HR)291539b0-0f2e-4d1a-b1ef-8a6e6a4715eb Czech Republic (CZ)2a4de7e4-4bd9-4c5c-b86f-b327c110c11d Poland (PL)52f6be90-8cfa-458d-af72-52fd73a24a0e Bulgaria (BG)209f6b1f-0fe6-4ddf-af76-e91a8557aa22 Poland (PL)03d5b694-9afd-4870-8177-a2d8ae32d0a6 Portugal (PT)a3564365-ab53-47b8-8d13-5a72edc5eaf8 Sweden (SE)508c0059-8c07-4f74-af36-bcf50b62021f Hungary (HU)47ab65f8-2ebe-4a9f-8a2a-9555f77e09da Belgium (BE)e91bee12-3ffe-4065-832a-5fe46d444f0b Spain (ES)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z2HREHAJ200A000000XX
