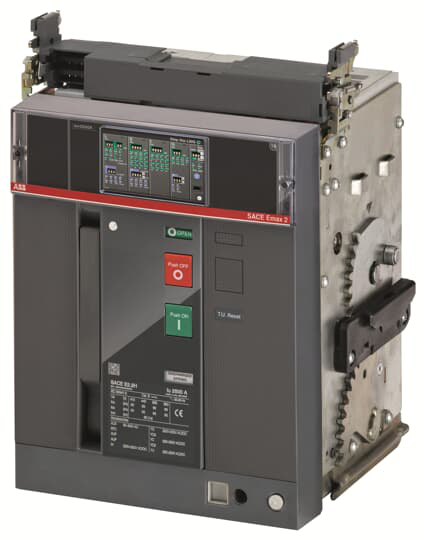

ABB 1SDA072311R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E2.2S 1250 THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/DIP-LI R 1250 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2S 1250 Ekip Dip LI 3p WMP
ABB 1SDA072311R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0431
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 15000 cycleUe = 500 ... 690 V 15000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 176 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1250 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 85 kA(400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 66 kAfor 3 s 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA
- Rated Uninterrupted Current (Iu)
- 1250 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Dip LI
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- E2.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 383 mm
- Product Net Height
- 425 mm
- Product Net Weight
- 48 kg
- Product Net Width
- 317 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- cecf6313-a3b8-47d5-8f0c-91719db6162d Italy (IT)
- Simplified SCIP
- 6dd55f93-f0b0-48e8-a40d-40c9fe03d048 Germany (DE)83852f37-832e-4f38-ae87-d6f9ca669008 Denmark (DK)33674d7c-6191-4cd7-baa3-c31bfb3f2c4c Croatia (HR)57963a8b-dec1-4302-9244-b94b87ae7f8e Germany (DE)d8d080dc-cd90-495c-b711-9d07f5e02034 Germany (DE)eb1d252e-d603-465c-a839-1d042542dcbf France (FR)59ca6b0f-6160-4428-b0d0-b4cdcc957f1b Finland (FI)8c8eb0da-9439-4c81-98b6-8cd409c8b8a4 Greece (GR)724f36d3-2ded-4b5b-a375-49676d80bed0 France (FR)f42d2bb2-0438-4657-949a-d1a0d353dae2 Belgium (BE)58bdb3b8-75e7-4aa8-809f-30cb7bec7e61 Germany (DE)9649749f-1039-47bb-a5e3-793248a9c2ce Estonia (EE)856ea8e2-b293-4a18-8a63-60a0001c9eab Netherlands (NL)4332ee13-f231-4d61-93b4-cbcd758a3172 Sweden (SE)8d361e57-fea6-48ba-8f01-46b69327fe5d Poland (PL)ccf6629d-b697-44ec-bb1f-8f0faea1eac3 Norway (NO)3e360c23-ec53-4de8-a7bc-364e64837232 Hungary (HU)0e52d25c-a063-4e2f-a013-ac818ee44275 Poland (PL)47d33ebc-5ce1-4cea-8a53-e475450a7a02 Poland (PL)d3b64048-417e-47e5-86ec-2a2cfb89b75d Czech Republic (CZ)d6e8e01d-e580-4625-89b6-75b36617c3d2 Sweden (SE)5a4e5664-d775-44b2-8f80-0b697cc72d91 Bulgaria (BG)dffc7f52-110d-4ac7-9277-8724ff4f9df3 Portugal (PT)6a55a72f-16fd-4b9e-9279-1684eb4d3d89 Belgium (BE)bbbed2cb-2c77-4fbd-b040-03695444f1fd Spain (ES)79f8e4c2-def9-407a-99c7-b2832eaee971 Hungary (HU)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z2SREHAA000A000000XX
