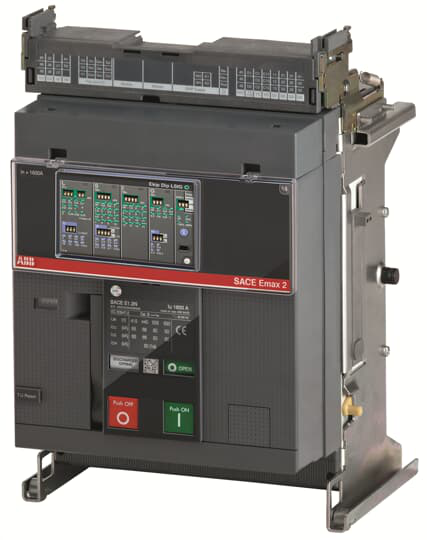

ABB 1SDA072221R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E1.2C 1600 THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/DIP-LI R 1600 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE1.2C 1600 Ekip Dip LI 3p WMP
ABB 1SDA072221R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0024
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 3000 cycleUe = 500 ... 690 V 6500 cycle30 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 400 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1600 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 50 kA(230 V AC) 50 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 42 kA(660 V AC) 42 kA(690 V AC) 42 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 42 kAfor 3 s 24 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 42 kA(525 V AC) 42 kA(690 V AC) 42 kA
- Rated Uninterrupted Current (Iu)
- 1600 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Dip LI
- Release Type
- EL
- Short-Circuit Performance Level
- C
- Standards
- IEC
- Sub-type
- E1.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 76.4 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2360
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 271 mm
- Product Net Height
- 363.5 mm
- Product Net Weight
- 18 kg
- Product Net Width
- 278 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1900 9AKK108468A3028
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- db963041-0b5f-4fbf-9732-72373e7d01bc Italy (IT)
- Simplified SCIP
- 516f8cdb-1e52-49fe-9d92-bcd60f6359a1 Poland (PL)b6dd9043-fcde-464b-a7b0-bf20490cdb0c Poland (PL)07f0cc50-936b-4311-9730-d3c2c2841cda Czech Republic (CZ)086a6eda-3e3e-4c3a-8b46-5bf87693bc22 Portugal (PT)07add197-52b2-4190-bbdb-c08fc89cf30c Bulgaria (BG)8e6dbbc9-1357-4929-a2b0-c7f324b2543e Sweden (SE)fa1e6d1b-6482-4c97-adde-370326165dde Belgium (BE)b83eb728-6f95-448d-bc9d-c8dea752c1a0 Spain (ES)70f9e7c9-243b-4ad7-90d2-f7e034729b42 Hungary (HU)e7ddd871-49d4-4878-9b0e-e73199b42db3 Poland (PL)52ca09bd-46ca-4ef9-94de-a3b84c7136b5 Norway (NO)f3ea1491-4bbc-494b-aa65-3ac22aa2dbec Germany (DE)ac41343b-e4b8-488f-8870-bc40599b81d5 Croatia (HR)0049aa51-ba89-4c5a-8ba6-0f1f33ccd576 Germany (DE)ea4a85b9-07fc-4e7e-abe1-228c038d56c6 Germany (DE)b74db57b-6d4a-4263-8b97-ac79f228d5d2 Germany (DE)e4610b46-c16b-4abb-84fc-a7cf915d97fe Denmark (DK)fefa0613-8212-4579-b97b-37bc963a153e Belgium (BE)2e9c2fb8-f428-4aae-b7df-b2ed68659b15 Estonia (EE)cbbe2aa1-898d-4b7d-ab59-0bdb4fd00abd Netherlands (NL)09dbe8a3-862f-4f5a-8927-d17c9c5a2757 Finland (FI)e3edfea4-1427-4762-b495-a8820818adf0 Greece (GR)a2a925bc-4e11-4fa8-b27e-11ad24eabb81 France (FR)51458665-f47c-428d-9979-87c84ab80cb5 Sweden (SE)e8116ff8-fdb9-4ed6-8779-86810ef1f2cb France (FR)ddbc78f1-2249-45e1-9c6a-8e3020c08d28 Hungary (HU)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z1CSEJAA000A000000XX
