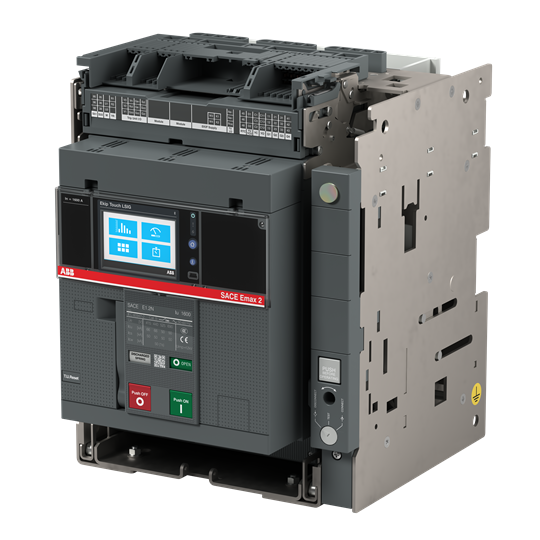

ABB 1SDA072155R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E1.2N 1000 THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSI R 1000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE1.2N 1000 Ekip Touch LSI 3p WMP
ABB 1SDA072155R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0024
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 8000 cycleUe = 500 ... 690 V 8000 cycle30 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 156 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1000 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 66 kA(230 V AC) 66 kA(380 V AC) 66 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 50 kA(660 V AC) 50 kA(690 V AC) 50 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 50 kAfor 3 s 30 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 50 kA(525 V AC) 50 kA(690 V AC) 50 kA
- Rated Uninterrupted Current (Iu)
- 1000 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Touch LSI
- Release Type
- EL
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- E1.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 76.4 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2360
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 271 mm
- Product Net Height
- 363.5 mm
- Product Net Weight
- 18 kg
- Product Net Width
- 278 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1900 9AKK108468A3028
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 15f34f5c-7f44-4e60-95a9-1bb5c54f2362 Italy (IT)
- Simplified SCIP
- f73f8616-3f07-414f-91ee-360459e0ec96 Spain (ES)d4a5736a-f8f6-45a3-9b39-2381fc362254 Belgium (BE)6801f153-d2f9-4ee0-b597-fb1f92c813e4 Hungary (HU)6227705a-cb64-432f-b0b2-972e1a6e957a Poland (PL)1a657bc4-1231-4454-9341-e85880940c5d Norway (NO)ca8132d3-4fb9-4637-bc18-e01f62d419ae Hungary (HU)014d2798-185d-411e-8f36-3c14579d8d1f Estonia (EE)4584f3f1-4fa1-4df0-8a9c-1e62e8ab0250 Netherlands (NL)473dff1f-9b89-4c51-8848-1e1319c3664a Greece (GR)1d87150c-8aba-4696-a4f1-a6d84fcabf13 Finland (FI)dd213c4a-5a68-49da-bf0d-94875a6c3bea France (FR)1088d601-9e95-4cce-b326-aeb826ee2c02 Belgium (BE)018ab276-40af-4002-b283-178671865e1c Sweden (SE)543943b0-600a-4e64-bf22-7ce10151df59 Germany (DE)61852cd8-d50a-46f9-a864-c0cafb7a59f3 Germany (DE)4b3ad909-a7fd-4d87-8ee4-ead1a48a9551 Denmark (DK)6bcbe27c-c2d9-4388-a4c5-d35c86261a67 France (FR)a324a0de-86a6-45e5-8bd6-9deb9dfc3d17 Croatia (HR)7409643c-dfda-4cb9-8e71-1cdd7e8d2b70 Germany (DE)5d47ab6d-45a0-410f-8851-e1175e3af944 Germany (DE)e2294aea-b7ef-4f10-8e83-f7f96879c3fe Sweden (SE)24197ea0-a7c8-48c2-9138-f64e040c42d0 Portugal (PT)82b34a3c-2df2-4b1c-884d-b8f482cf99ce Bulgaria (BG)944f8bc8-fa8d-480f-9c50-ee9a65299888 Poland (PL)5a96078a-aecd-45a0-beea-8107899a3248 Poland (PL)f3f19613-068d-4d81-be0a-77e3aee4c436 Czech Republic (CZ)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z1NQEGAE000A000000XX
