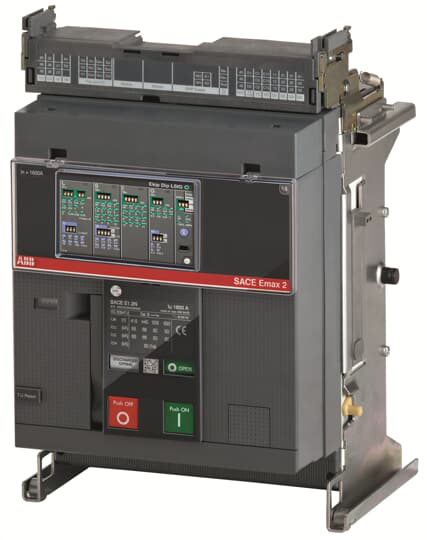

ABB 1SDA072112R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E1.2N 800 THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/DIP-LSI R 800 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE1.2N 800 Ekip Dip LSI 3p WMP
ABB 1SDA072112R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0024
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 8000 cycleUe = 500 ... 690 V 8000 cycle30 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 100 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 800 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 66 kA(230 V AC) 66 kA(380 V AC) 66 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 50 kA(660 V AC) 50 kA(690 V AC) 50 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 50 kAfor 3 s 30 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 50 kA(525 V AC) 50 kA(690 V AC) 50 kA
- Rated Uninterrupted Current (Iu)
- 800 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Dip LSI
- Release Type
- EL
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- E1.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 76.4 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2360
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 271 mm
- Product Net Height
- 363.5 mm
- Product Net Weight
- 18 kg
- Product Net Width
- 278 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1900 9AKK108468A3028
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- f08bc33c-e8d9-4c4f-84a4-602627d5f11e Italy (IT)
- Simplified SCIP
- b64b4368-d29b-4477-a673-ff6df384cc49 Belgium (BE)c12733f2-c2f3-4b5e-acbb-131f462e9bb2 Spain (ES)a6b6092c-a372-479a-b2d2-a8f6a561c947 Hungary (HU)6871a945-b345-4099-9595-cff3253755cc France (FR)00dc2073-ab18-47c6-9f64-09ffd3f66eff Croatia (HR)8a169f00-12a5-42f6-9f1c-27110a0099ad Germany (DE)37554978-a0be-4ab3-afbc-b03b00565a29 Germany (DE)f79d718f-532c-486f-b49c-50a2cadf9901 Germany (DE)ebf7b75d-b141-4176-934d-5b5bef06d35c Denmark (DK)40181ee2-9665-4fe9-854e-239b2951491f Germany (DE)6003e63a-9014-452e-a042-695592899660 Belgium (BE)6c153c04-e52e-4034-a9d0-6329b2bf4a4c Sweden (SE)176e2d4d-9705-424e-a29e-bbea434172d2 Finland (FI)af7c8ace-99ca-4fdc-9d44-be874bf720f1 Greece (GR)3a3fb900-a09f-4ed8-862d-44da8a3791d3 Estonia (EE)3bfbe9ac-2ef3-4ff4-8134-0ad8a104c427 Netherlands (NL)e484b557-ab6d-420e-b388-def0a9b0fb0d France (FR)7b29438f-000d-4ed2-9689-7cb01fc20b01 Poland (PL)9e23fe15-c062-4279-b277-5efb1d5e1dc4 Hungary (HU)5402e639-8158-44fa-be35-51535394d6dd Norway (NO)ac61f0eb-a2f3-44df-b38a-24d21a95a5de Czech Republic (CZ)c0a9b418-cca9-4ea3-a1d5-6246b87f7028 Poland (PL)71a4ef5c-cfac-43b4-9c47-b96e3ae6144e Poland (PL)dcc42976-1618-4c3d-a832-2445196b6c1e Bulgaria (BG)5999a5e1-8e29-4e6b-ac2b-7829c51abe99 Portugal (PT)13d54a73-ee58-4675-97f0-e68a3d84a8a0 Sweden (SE)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z1NPEFAB000A000000XX
