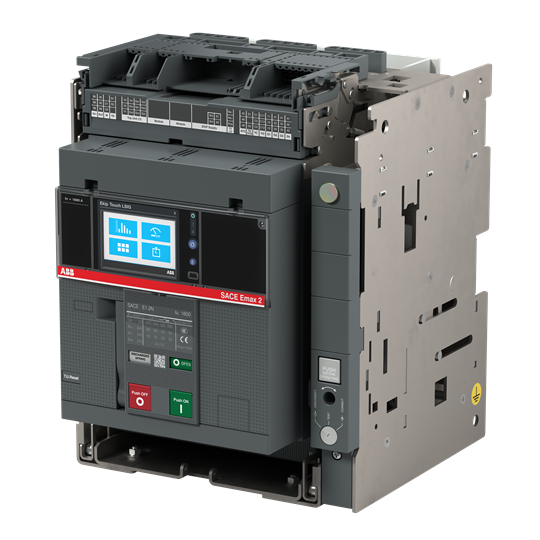

ABB 1SDA072096R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E1.2B 800 THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSIG R 800 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE1.2B 800 Ekip Touch LSIG 3p WMP
ABB 1SDA072096R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0024
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 8000 cycleUe = 500 ... 690 V 8000 cycle30 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 100 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 800 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 42 kA(230 V AC) 42 kA(380 V AC) 42 kA(400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA(500 V AC) 42 kA(660 V AC) 42 kA(690 V AC) 42 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 42 kAfor 3 s 24 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA(500 V AC) 42 kA(525 V AC) 42 kA(690 V AC) 42 kA
- Rated Uninterrupted Current (Iu)
- 800 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Touch LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- B
- Standards
- IEC
- Sub-type
- E1.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 76.4 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2360
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 271 mm
- Product Net Height
- 363.5 mm
- Product Net Weight
- 18 kg
- Product Net Width
- 278 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1900 9AKK108468A3028
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- abc669ac-3b5d-4f21-84e8-488477b332c2 Italy (IT)
- Simplified SCIP
- 43d28e25-c632-46ee-8d00-81868a400437 Hungary (HU)6ca36348-ddef-4cd2-84d2-da116ec7f29b France (FR)4319743c-a28f-4eb0-b000-6950752e3e25 Norway (NO)1fca46bf-659a-4eee-abe6-a002add46e9d Hungary (HU)522b3efa-a190-4b9b-a385-3459c2bacbb0 Denmark (DK)b9271c38-82f6-4241-8a43-4de9e3649979 Germany (DE)9dd85ec2-92c3-4282-a200-2d65d2e847e3 Belgium (BE)00f6ca62-a7b6-456b-b525-5a256f2e507a Germany (DE)732a1cab-59c4-4ed1-b858-506e1f1f4f14 Croatia (HR)bfeacbef-c859-4762-b40d-45f99d42a990 Germany (DE)221bb903-a3ac-421f-8e27-234f23f8d3f0 Germany (DE)c119c91b-ddc4-4dc3-9cfc-48c6f0c7db35 Sweden (SE)ca6e4338-8d9d-45e9-ae70-abd95835a15e Netherlands (NL)7ce91782-2b2d-4527-8d82-311144f9e122 Estonia (EE)368ec88e-04c4-4c23-8984-6836f86ac394 France (FR)3e9c44e4-5aed-4716-b09d-b0cd0cfa7c07 Greece (GR)50cfe2b4-8e25-4a38-9997-f396414c26ea Finland (FI)c56a94c5-f9d3-469d-b6bd-c9f69a4c41c0 Poland (PL)bf47301d-13ef-496c-83ae-f99656fc4cf0 Belgium (BE)240db5a9-f9a3-459a-9237-d0d11d4b03fb Spain (ES)ce989e21-f4e3-4464-9fa9-596427344a7a Poland (PL)90e18455-0d37-4650-9816-c9c485d74598 Poland (PL)dfd7ba56-361c-4740-9070-509fef012d36 Czech Republic (CZ)9367de58-0801-48a0-aa9e-20eaa0199f19 Bulgaria (BG)e25c6b08-f452-47e1-9ae7-850401a069f3 Sweden (SE)0b61ffca-f801-4d56-a0a3-54a275a8aa5a Portugal (PT)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z1BPEFAF000A000000XX
