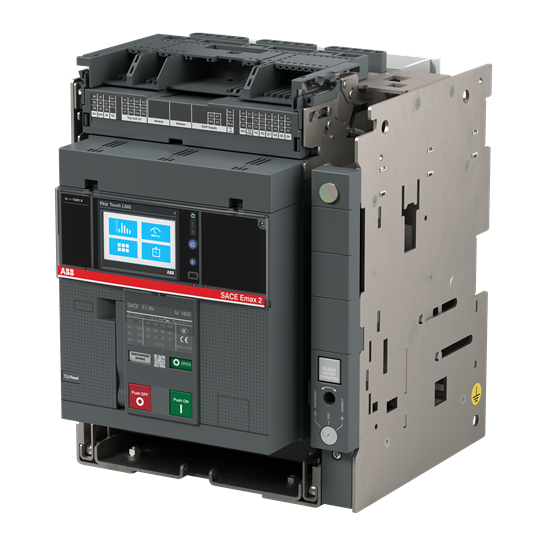

ABB 1SDA072076R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E1.2N 630 THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSIG R 630 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE1.2N 630 Ekip Touch LSIG 3p WMP
ABB 1SDA072076R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0024
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 8000 cycleUe = 500 ... 690 V 8000 cycle30 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 62 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 630 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 66 kA(230 V AC) 66 kA(380 V AC) 66 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 50 kA(660 V AC) 50 kA(690 V AC) 50 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 50 kAfor 3 s 30 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 50 kA(525 V AC) 50 kA(690 V AC) 50 kA
- Rated Uninterrupted Current (Iu)
- 630 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Touch LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- E1.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 76.4 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2360
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 271 mm
- Product Net Height
- 363.5 mm
- Product Net Weight
- 18 kg
- Product Net Width
- 278 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1900 9AKK108468A3028
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 3ce22cc5-4f6a-4e28-b411-0ad3bf4c07ae Italy (IT)
- Simplified SCIP
- 19041a08-6dde-41ab-b990-514ba89ec219 Hungary (HU)19c195a7-6629-468d-94bb-8104b83fc619 Belgium (BE)e1a3a3ea-edb8-4f3c-ab8d-3e33d648b67b Spain (ES)eec1cfe5-4c66-4cd3-b733-b646b8e10b10 Hungary (HU)173a9455-c4dd-4de2-bb7d-ba89e9c572be Norway (NO)c90a8576-4fbf-4d4e-ac76-2040af781eba Poland (PL)04af3b8d-21ff-47b5-87d6-8234da86eaf5 Greece (GR)2e3e3faf-e3d9-42e1-ac08-9f6a917060e4 Finland (FI)6107f667-aebf-4545-b9e7-dc50aeb649eb Netherlands (NL)3471ff3f-2a68-46ee-abfa-f875ab8cee14 France (FR)2ccdfe02-1ad1-4063-8d77-e3386100a4ee Sweden (SE)82cec120-23a7-40d3-80fb-67ed84cdd6a7 Estonia (EE)f7550928-9105-4878-bfc7-2e78e672ae94 Germany (DE)46d2ba64-f598-4b8c-b2f9-5de52ea127db Belgium (BE)d20c043e-6049-431f-a548-170b04e7b202 Denmark (DK)d0a7f520-2ba5-4165-b396-d102aca3d96d Germany (DE)bef03dda-6881-45d5-9515-d799cebaab26 France (FR)4de6cc58-a33b-4d7b-86f1-a20d778a8bfd Croatia (HR)428e0cbb-eaf2-4a49-a2d0-7680de6da9a3 Germany (DE)adb975de-8674-4e41-b6d9-db0fd64a554b Germany (DE)58fa8876-2779-4be3-8f27-3a5cc0bc6534 Bulgaria (BG)48f8dea5-e709-4870-8fec-7e0383a01b74 Portugal (PT)284fa083-c96c-478f-82db-dd56cf43e8c4 Sweden (SE)9cddc12c-3f6a-4213-bc33-23f379b4bbde Czech Republic (CZ)a15ff459-361e-4db2-bbeb-7503af2f9289 Poland (PL)cd9bb8a6-d9f1-47bb-81af-96b60a119a71 Poland (PL)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z1NNEEAF000A000000XX
