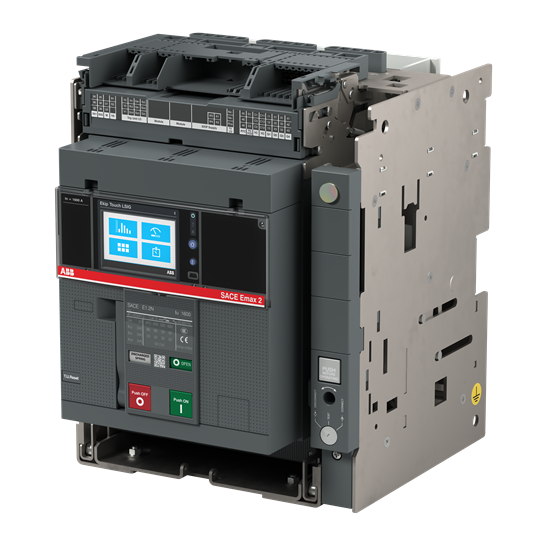

ABB 1SDA072075R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E1.2N 630 THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSI R 630 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE1.2N 630 Ekip Touch LSI 3p WMP
ABB 1SDA072075R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0024
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 8000 cycleUe = 500 ... 690 V 8000 cycle30 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 62 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 630 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 66 kA(230 V AC) 66 kA(380 V AC) 66 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 50 kA(660 V AC) 50 kA(690 V AC) 50 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 50 kAfor 3 s 30 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 50 kA(525 V AC) 50 kA(690 V AC) 50 kA
- Rated Uninterrupted Current (Iu)
- 630 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Touch LSI
- Release Type
- EL
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- E1.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 76.4 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2360
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 271 mm
- Product Net Height
- 363.5 mm
- Product Net Weight
- 18 kg
- Product Net Width
- 278 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1900 9AKK108468A3028
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- a4531c46-d451-41e4-bafb-5fc41c0f1acf Italy (IT)
- Simplified SCIP
- 755b0427-eff0-4460-b2c6-a0e190ff9c29 Bulgaria (BG)9f96fdce-84d2-4c38-b66f-58f6634f1647 Sweden (SE)a44fd514-d873-4b2c-a47d-d90b45239626 Portugal (PT)61c3323a-d8e8-456d-b8bb-f55d721e8179 Poland (PL)61873f48-f85d-4b5a-a6b7-8d99d9347b04 Poland (PL)e4210830-0835-420c-83ef-471f0b16c58f Czech Republic (CZ)9b5310f7-b954-4921-b9ce-ef830bc2db97 Spain (ES)ad42fd8e-763b-4ccc-85ce-cb5a0ae850c5 Belgium (BE)ea4a8ca5-bc8e-418a-82ad-370b125c07c7 Poland (PL)c182aeb1-d75c-45c9-8e45-0cd4919a3615 Norway (NO)12ed0b6f-53a8-4e90-92c0-eae46bee7aaa Hungary (HU)8487c914-ecab-4ce6-abac-627ecf57b28f Sweden (SE)b7045cda-e571-405e-8ec8-c498c1eebcdd Netherlands (NL)1f7d95e5-25a7-431a-a317-cb8f08924c79 Estonia (EE)a4d8ca5e-9b33-4573-9fd7-bf48cf2897f5 Finland (FI)3ecc0a4b-1d27-4671-9b44-60d0c463dc8d France (FR)04fdb760-fa7c-4399-8769-4d638c88aec9 Greece (GR)95127f28-831a-461c-b6e9-bd72d7b9263d Germany (DE)e5462bbc-5597-4783-9ee8-4ca106e9b6fa Germany (DE)cd36eb86-b8b6-4ad8-9022-1c8759c4a9b9 Croatia (HR)a059eb7c-9205-4ef3-a75c-ab89f359d248 Belgium (BE)fff07bf0-5a2c-4e91-9bbb-1b67adb112d8 Denmark (DK)3f2c6a69-d021-40cf-bf97-b98c9245f91d Germany (DE)7d48350f-7a35-4364-b446-30a282096488 Germany (DE)418b83cc-684a-47df-b5a5-3e796cd98f59 France (FR)d828b577-0801-4a73-bd93-540bb407234c Hungary (HU)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z1NNEEAE000A000000XX
