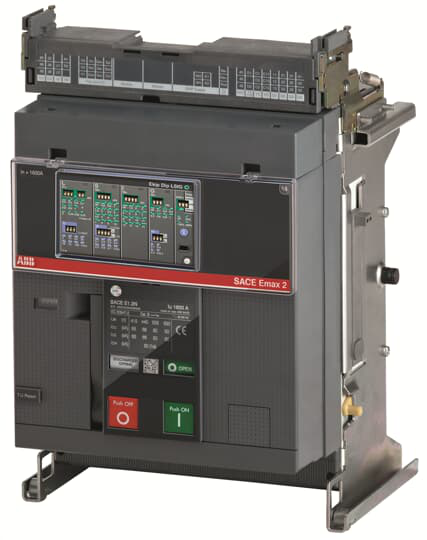

ABB 1SDA072061R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E1.2C 630 THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/DIP-LI R 630 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE1.2C 630 Ekip Dip LI 3p WMP
ABB 1SDA072061R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0024
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 8000 cycleUe = 500 ... 690 V 8000 cycle30 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 62 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 630 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 50 kA(230 V AC) 50 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 42 kA(660 V AC) 42 kA(690 V AC) 42 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 42 kAfor 3 s 24 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 42 kA(525 V AC) 42 kA(690 V AC) 42 kA
- Rated Uninterrupted Current (Iu)
- 630 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Dip LI
- Release Type
- EL
- Short-Circuit Performance Level
- C
- Standards
- IEC
- Sub-type
- E1.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 76.4 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2360
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 271 mm
- Product Net Height
- 363.5 mm
- Product Net Weight
- 18 kg
- Product Net Width
- 278 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1900 9AKK108468A3028
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 6d0618cd-f996-4662-adae-243f2e4b7d2d Italy (IT)
- Simplified SCIP
- 3e4c32f2-0152-4b79-956c-78fac43e4f1d Portugal (PT)d24a5f5d-b996-4aec-87f5-401f22fb07f4 Czech Republic (CZ)2e824420-42b6-4c26-89b7-55f28841713a Hungary (HU)7356938d-a8f9-4a9a-a09c-cc77e6c38b5a Belgium (BE)07aac190-8338-445a-bebd-d83961e3b4c9 Spain (ES)b4802db9-d00f-4106-9cdc-ae9f7b6a3065 Poland (PL)10344ac5-e15b-4fff-8c12-45e768934b85 Norway (NO)c22ef2e6-876f-45aa-9cdd-cd5f2831e80e Hungary (HU)a2d05866-8d14-43c1-92ec-c8c25e38fcf3 Germany (DE)ecf34d83-7755-403f-ac89-dec110fea1b3 Germany (DE)713a103d-c92e-4590-ace9-e5a2941045b8 Denmark (DK)39e876f3-76fc-4063-b826-6e54161ced30 Belgium (BE)58af985b-d93c-4047-b817-c4dfec054832 France (FR)7980b906-4af8-4a4e-8ba1-7d450a73a248 Greece (GR)a5d2cc05-777f-4c5c-99c0-f78341191a6c Finland (FI)5be4b23e-1579-4292-ba45-c9b0f89a7468 Netherlands (NL)ee6468e7-bf66-45fb-b7d1-e05d05f926b1 Estonia (EE)78e3eb1f-8292-4ad4-9411-2cca971ad535 Sweden (SE)076fbb0c-6d30-4190-89a7-2ff0bd71375f France (FR)6b53f1cf-450b-4cfe-9dca-11f7fa9225dc Croatia (HR)496a7ec8-8654-47ad-80f9-0d9369270a3a Germany (DE)4f079a12-afb9-4dc8-bda0-74fa89c2b830 Germany (DE)7286fdb5-2792-44c0-b18f-17b13185ff34 Poland (PL)235ab62a-4002-4e8c-b76e-4437dc0737bd Poland (PL)c9e3937e-08ae-4935-afac-22b20205b604 Sweden (SE)4aaf67ee-49d6-415e-839f-cd03747b6ba9 Bulgaria (BG)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z1CNEEAA000A000000XX
