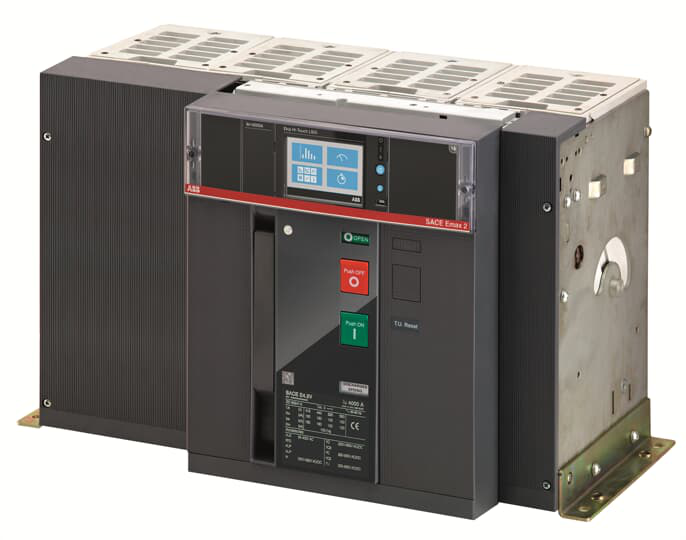

ABB 1SDA071849R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E4.2H 4000 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSIG R 4000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE4.2H 4000 Ekip Hi-Touch LSIG 4p F HR
ABB 1SDA071849R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0197
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 5000 cycleUe = 500 ... 690 V 4000 cycle20 cycles per hour
- Mechanical Durability
- 15000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 465 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 4000 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(660 V AC) 85 kA(690 V AC) 85 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 85 kAfor 3 s 75 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(525 V AC) 85 kA(690 V AC) 85 kA
- Rated Uninterrupted Current (Iu)
- 4000 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Hi-Touch LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- H
- Standards
- IEC
- Sub-type
- E4.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.3 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2363
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 4. Large Equipment (Any External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 70 kg
- Product Net Width
- 510 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1904 9AKK108468A1910
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- e840a757-79d4-433c-becb-befef0cf5de5 Italy (IT)
- Simplified SCIP
- b7693a2b-9e1e-4c2b-b76c-c1ea553e1888 Bulgaria (BG)a790348d-a32b-4663-a693-94dd9b75abd9 Poland (PL)2d30d583-8b5f-43e5-944d-a705503d1f17 Poland (PL)7f94984a-d7c9-49fd-88d3-b57eaa478315 Portugal (PT)ed469b8b-48fd-4eeb-9df9-b38180a75b43 Sweden (SE)77d2a5ad-a697-4281-92bb-ceb9ae12db96 Norway (NO)07622b67-f6b9-42e8-8e67-0999710371f6 Poland (PL)4668af59-b224-4959-9564-deeda1c7f11b Hungary (HU)20d79be9-dcba-4744-b67e-377814986f4d Czech Republic (CZ)f4813d70-46ea-4395-a1e7-0f4842085892 Denmark (DK)df611ba4-8860-4c5e-9e20-d1051664b8c3 Germany (DE)705ef5b9-cde7-4c48-a1f6-c682d51d352e Germany (DE)0eed01c8-043d-4231-be7d-980670ee308d Germany (DE)38e9b6f6-85d6-46c9-a9fc-5fe14f601d30 Germany (DE)ad1d749d-cfb7-4563-b55a-fc385522fbd0 Estonia (EE)3ebc82e7-7054-4f21-96af-9503f2eb0b0f Belgium (BE)dc19277e-7a04-486d-b846-3894506dff20 Sweden (SE)e4dc5840-1e13-40db-a6e3-b58fbb996be6 Netherlands (NL)77a2a1eb-77b7-4a71-923d-7b7608de45d3 Finland (FI)87aac934-fe62-4f1c-ad41-5359f0352393 Greece (GR)9eea0471-2012-4cbe-919c-afd705ba777d France (FR)caa2c70e-04a7-4296-848e-7eeea29b4fe2 Croatia (HR)037a6307-9348-407e-b486-e6c1ed1c6a55 France (FR)330b7d53-9a8c-47ab-ac22-83e96bf27b44 Hungary (HU)cbb5c1cb-9666-419f-a956-f97c37f8ccf8 Belgium (BE)8eb525a4-9e53-49f4-97d9-61726f0db277 Spain (ES)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZCHWERBK200A000000XX
