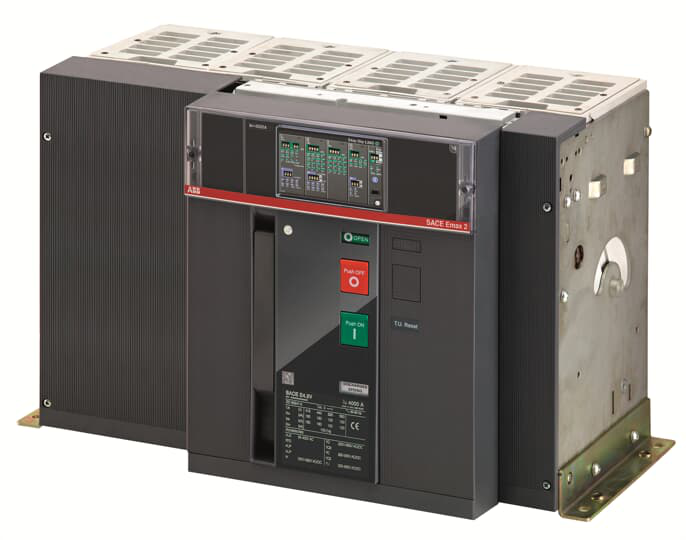

ABB 1SDA071801R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E4.2V 3200 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/DIP-LI R 3200 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE4.2V 3200 Ekip Dip LI 4p F HR
ABB 1SDA071801R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0197
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 7000 cycleUe = 500 ... 690 V 7000 cycle20 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 425 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 3200 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 150 kA(230 V AC) 150 kA(380 V AC) 150 kA(400 V AC) 150 kA(415 V AC) 150 kA(440 V AC) 150 kA(500 V AC) 100 kA(660 V AC) 100 kA(690 V AC) 100 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 100 kAfor 3 s 75 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 150 kA(415 V AC) 150 kA(440 V AC) 150 kA(500 V AC) 100 kA(525 V AC) 100 kA(690 V AC) 100 kA
- Rated Uninterrupted Current (Iu)
- 3200 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Dip LI
- Release Type
- EL
- Short-Circuit Performance Level
- V
- Standards
- IEC
- Sub-type
- E4.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.3 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2363
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 4. Large Equipment (Any External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 70 kg
- Product Net Width
- 510 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1904 9AKK108468A1910
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- de0d8263-12e5-4d81-a7d2-097d79f143fc Italy (IT)
- Simplified SCIP
- 576bbcfe-9add-4932-8d89-51837509a89f Poland (PL)181d4fc2-18b7-4bcc-b0f5-9f405ee1091a Hungary (HU)4dc16606-e55b-40a5-b06f-a532d0a535a2 Spain (ES)0d79cf62-c0c0-4567-80df-4f5cf45c88cf Belgium (BE)88fad418-0935-4a2b-a4c9-287d0faa3ed4 Hungary (HU)5ba07bc3-5494-4701-8d16-f7bcd7c32cff Poland (PL)7a7cbc96-4c99-4bc6-8fa2-ae8203a22bb4 Norway (NO)67d6e13b-1b9c-46c4-9589-fe3c8a49a499 Czech Republic (CZ)c279f1ee-f171-4188-a779-60233b73551a Croatia (HR)a0523513-2fc4-4e47-a6f0-c771bfa1731d France (FR)72c50a09-4ddd-403e-b84f-56ae9774fbf4 Germany (DE)dc32ebeb-47eb-4597-a343-b2038cc54408 Denmark (DK)c2fb8a8b-17aa-4d99-a7b0-4121018bd401 Germany (DE)00ac4056-e260-49ce-b552-ec009166bbfa Finland (FI)30bcd630-0b20-4fcc-9921-5b95ad20be6f Greece (GR)d70463f1-3bec-4e79-a1f0-f8eeecde6616 Estonia (EE)6a262bf2-7223-4afe-8b5e-c017c9225f69 Netherlands (NL)554774cf-55bd-4c50-ae6f-0dce837e0b99 France (FR)0042b1a0-02ac-49be-9168-97f9e1679340 Germany (DE)5a60fe98-8ff5-4db4-9ea5-402b1d2e9a23 Germany (DE)2e375bc7-6585-4a9b-93b8-64ab37edc463 Belgium (BE)8d32a9de-2a3c-48ad-8151-44444ef8a0fe Sweden (SE)b7cd9fc7-7ca2-4a61-816a-e8ad703fc43b Sweden (SE)d22abbc6-0e17-4952-be10-541ed7a0b3d8 Bulgaria (BG)5e589e9c-126f-4742-bd6c-31f2d62b967c Portugal (PT)936fa078-813d-4faf-898e-cfe79ed3df97 Poland (PL)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZCVVENBA000A000000XX
