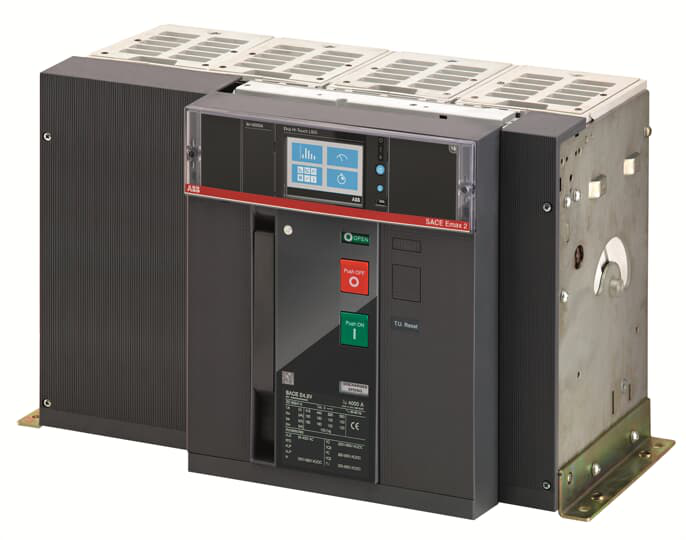

ABB 1SDA071798R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E4.2H 3200 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSI R 3200 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE4.2H 3200 Ekip Hi-Touch LSI 4p F HR
ABB 1SDA071798R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0197
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 7000 cycleUe = 500 ... 690 V 7000 cycle20 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 425 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 3200 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(660 V AC) 85 kA(690 V AC) 85 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 85 kAfor 3 s 66 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(525 V AC) 85 kA(690 V AC) 85 kA
- Rated Uninterrupted Current (Iu)
- 3200 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Hi-Touch LSI
- Release Type
- EL
- Short-Circuit Performance Level
- H
- Standards
- IEC
- Sub-type
- E4.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.3 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2363
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 4. Large Equipment (Any External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 70 kg
- Product Net Width
- 510 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1904 9AKK108468A1910
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 9d176fac-e423-4c28-be3f-ecdce558cc7d Italy (IT)
- Simplified SCIP
- 2fb1705c-ae7f-40d8-bba9-5d9c73685f1c Czech Republic (CZ)90efdeb2-b283-4983-9e03-38d13d88e73f Hungary (HU)e92baac9-a576-434b-976b-6d327b3f5848 Norway (NO)141df488-3458-49b1-baeb-61b6bedb3bcf Poland (PL)a871fbc2-9b5b-46a3-90c9-2ff87ed23518 Croatia (HR)7aeba3ba-99e2-407a-b8e2-233261148760 France (FR)687ded11-f7e4-4955-97b8-8ee98b36dd1b Germany (DE)a848bb63-dca6-4184-b027-39f03a3c9a4e Denmark (DK)b275fb27-e01a-4e1b-8c84-891ed735034d Germany (DE)0c399ff1-cf11-48c5-b80a-1eeffeca1805 Netherlands (NL)a1c9b47c-e98a-42d3-b2b6-cd39968bd176 Greece (GR)0eb2a150-e92a-4360-ab02-a24e6aee0a47 Estonia (EE)789d1956-e40f-4cc9-91fa-0b2854fc8de2 France (FR)d2bde273-90ec-40d7-9436-c03b86ea1a2e Finland (FI)25b6adb0-8705-4db2-94dc-40d7e4175929 Belgium (BE)4b806aef-e9c6-4807-8b7f-aa8b7c3357d2 Sweden (SE)5806c60e-b35c-431d-b979-fb55e7a91662 Germany (DE)e39437fa-171f-4c4d-a04f-95c3bc7f7389 Germany (DE)66afbb2e-54a1-4fa3-9142-e3743982684d Portugal (PT)d468ca6d-b1e4-4d75-a7a2-8455609222e8 Bulgaria (BG)5cf882a8-ebd6-44e1-85c3-521c77f7ab87 Sweden (SE)3f37c7f2-59bf-464e-a343-b22e7f8e1e67 Poland (PL)082e5152-4d8d-4c56-85ce-0b672d0fc8cc Poland (PL)d8c8c7ce-4135-496d-a2b3-4ae5d0901b1b Belgium (BE)32dc418a-bb68-4487-83a0-f74d76947956 Spain (ES)01a1bf07-5fd9-4d7b-8f16-b039db5822f5 Hungary (HU)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZCHVENBJ200A000000XX
