ABB 1SDA071786R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

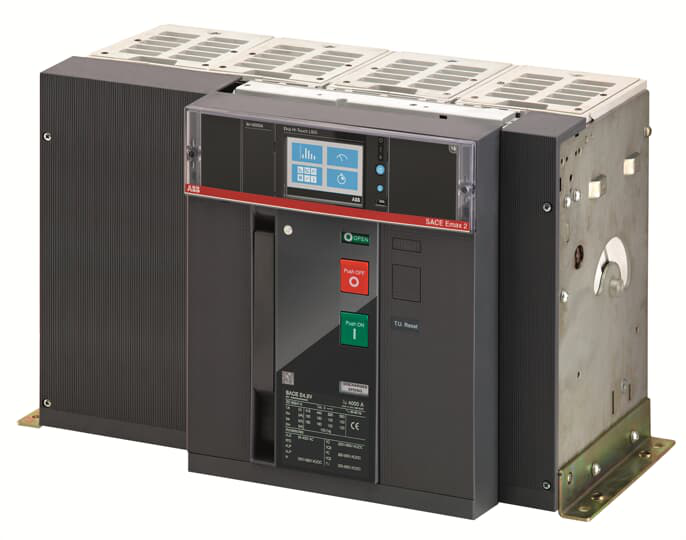

C.BREAKER SACE EMAX2 E4.2S 3200 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSIG R 3200 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE4.2S 3200 Ekip Touch LSIG 4p F HR
ABB 1SDA071786R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0197
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 7000 cycleUe = 500 ... 690 V 7000 cycle20 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 425 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 3200 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 85 kA(400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 66 kAfor 3 s 66 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA
- Rated Uninterrupted Current (Iu)
- 3200 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Touch LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- E4.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.3 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2363
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 4. Large Equipment (Any External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 70 kg
- Product Net Width
- 510 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1904 9AKK108468A1910
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- a64f581a-f68b-4ad5-a764-eb6fc2e1416e Italy (IT)
- Simplified SCIP
- a1fc4e2b-c002-452f-a894-8903cf419184 Germany (DE)609ed709-545e-4a5e-9aa0-1ab8331b70c1 Germany (DE)c302f828-9818-4e4c-9a83-e0d592601419 Finland (FI)5f7f076d-f928-474e-9ca1-906c5be128f4 France (FR)c876a760-9fdf-4e4f-95b2-d5f69c845a7f Greece (GR)cff3f7a9-0983-4afe-ad86-9ec370820532 Sweden (SE)71bbf68a-84ed-4877-b50c-bd3383a81faf Netherlands (NL)1d7120a9-1162-417e-a31d-654fdd21d520 Estonia (EE)79d16aa6-706d-4536-ad1b-fae12d435fc4 Belgium (BE)04238a01-08c3-4dfc-b275-300ebe7c9f93 Germany (DE)b7288246-79f2-4f63-9e1b-be2186ae7f59 Czech Republic (CZ)e4e13675-c006-4da0-9aab-967f3a78d2c0 Poland (PL)2c1cc4d8-1d30-4ed8-a2dd-db2af2bb6271 Poland (PL)a542357b-5849-41d5-83ea-b10f467aa8ad Portugal (PT)da0604d1-9189-4694-9740-c76248f9df8e Bulgaria (BG)51856006-e487-4827-b90c-1409f22411a4 Sweden (SE)43381e29-dcac-4aea-a5c8-3748bc847bce Belgium (BE)8ef1daaf-e49c-4340-994e-e25461148a15 Spain (ES)004c3417-4656-4132-b83c-0d5d1491378b Hungary (HU)3d22092d-70ea-43fd-9a05-04dded3bb144 Hungary (HU)baf83598-3dff-4bb3-a312-495c79a20f9c Norway (NO)32c7541c-4251-4e17-95da-c5b0978edf2a Poland (PL)d6ec475a-c3ee-41cb-b788-54755259517c France (FR)bff0103c-5b81-4256-b996-59f571f14f75 Denmark (DK)f79cea4e-cf8e-4a82-8584-f240c965e6f8 Germany (DE)3796ca82-2afc-4ab1-ac55-800b91b25f7c Croatia (HR)
