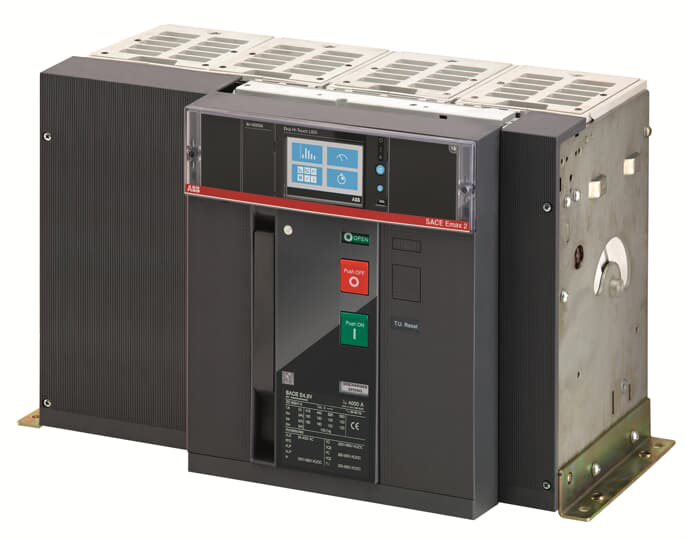

ABB 1SDA071759R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E4.2V 2500 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSIG R 2500 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE4.2V 2500 Ekip Hi-Touch LSIG 4p F HR
ABB 1SDA071759R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0197
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 8000 cycleUe = 500 ... 690 V 8000 cycle20 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 425 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 2500 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 150 kA(230 V AC) 150 kA(380 V AC) 150 kA(400 V AC) 150 kA(415 V AC) 150 kA(440 V AC) 150 kA(500 V AC) 100 kA(660 V AC) 100 kA(690 V AC) 100 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 100 kAfor 3 s 75 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 150 kA(415 V AC) 150 kA(440 V AC) 150 kA(500 V AC) 100 kA(525 V AC) 100 kA(690 V AC) 100 kA
- Rated Uninterrupted Current (Iu)
- 2500 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Hi-Touch LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- V
- Standards
- IEC
- Sub-type
- E4.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.3 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2363
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 4. Large Equipment (Any External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 70 kg
- Product Net Width
- 510 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1904 9AKK108468A1910
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 44327b60-c277-4e62-87d6-4539f9ff8cfa Italy (IT)
- Simplified SCIP
- c535b71e-d48d-4de2-b575-1743a0450f38 Spain (ES)7023d19e-16e2-4cd7-9c7b-cc643609bc8c Hungary (HU)7a88a79c-045c-4dbb-bfae-ae798cd378bd Hungary (HU)0e3bac7b-16fd-450c-a096-604b9f62a6a1 Norway (NO)db68442f-f591-484c-aea2-57a56e2a1a58 Netherlands (NL)49d205fc-536c-433a-bcbc-c186383db31d Poland (PL)fae36763-f80c-4061-920d-bd3032ed2e82 France (FR)f6ca4c22-81a2-4d0d-8699-d2a50beaa172 Finland (FI)4df3d886-4b3e-403c-8ae5-bb9f22a6e731 Germany (DE)4e80b268-d5b4-49b4-a8ea-86dbc0bd27cf Germany (DE)08985d80-afb7-40e5-b265-a21a4a8964e9 France (FR)bb7a95b4-abe4-4b9e-90c8-81df1d22500d Croatia (HR)edf65d20-001a-4432-b4a4-5392ff9b51b8 Denmark (DK)9538191f-a55d-4b85-96fc-39a749335a9e Germany (DE)9bdcf807-9cd4-4318-bde4-17ca6352cda8 Belgium (BE)ccfbb97c-f3d4-4125-8cc2-6b4135326b36 Bulgaria (BG)27f3df06-cf32-4658-acc3-88b75cee7f0a Germany (DE)e1c65caf-3db9-4cb7-8692-ad76287cdcf5 Sweden (SE)2a1ebe5f-1935-45df-ad0a-5636ed1dd200 Estonia (EE)891c3e59-e395-4f58-b724-c79be88bf457 Greece (GR)90d9379d-542e-4052-a464-fd8aa817774a Portugal (PT)c431680b-c3a3-4bc8-9110-4fb7f7f39124 Sweden (SE)598605b4-ce2c-4c84-a749-849bde238036 Poland (PL)d8e2cbf7-3d2e-46ab-96d0-3fa0eb3d56dc Czech Republic (CZ)f40f6656-aa1b-4bc5-9381-e28705ceef49 Poland (PL)28e030fa-e5fa-4dde-8d47-36fc77dea7fa Belgium (BE)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZCVUELBK200A000000XX
