ABB 1SDA071706R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

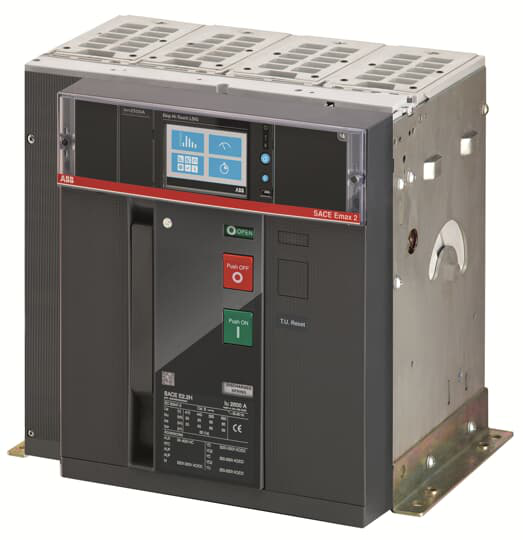

C.BREAKER SACE EMAX2 E2.2S 2500 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSIG R 2500 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2S 2500 Ekip Touch LSIG 4p F HR
ABB 1SDA071706R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0123
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 8000 cycleUe = 500 ... 690 V 7000 cycle30 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 267 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 2500 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 85 kA(400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 66 kAfor 3 s 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA
- Rated Uninterrupted Current (Iu)
- 2500 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Touch LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- E2.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 53 kg
- Product Net Width
- 366 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 59b043de-92aa-4d79-b705-e316dd72db8b Italy (IT)
- Simplified SCIP
- 490124b5-fa2d-40ef-ba7b-14bcbe70ed2d Poland (PL)05c4dc27-1e7d-47e6-bbdc-36353fa1bd72 Czech Republic (CZ)7c088f80-c02e-4f4a-b5b5-0b6569080250 Poland (PL)9617c2fe-99ed-4ce6-a15f-718dd1b346fc Portugal (PT)223c051b-1ad0-4f71-ae0a-8f6fae34fe92 Sweden (SE)5e9e97dc-176b-4f54-82b3-ebfd06130162 Poland (PL)d57fde10-b0e5-4ad0-9d12-47bb721cb449 Norway (NO)0f914f96-46cd-42b5-8861-aa853a6833f1 Hungary (HU)ef38d03d-0625-4e30-b995-6fefe9eb4a0e Sweden (SE)142a1aa0-a0cb-4f64-9595-a45ce82d562a Estonia (EE)b43b77f3-7c26-4c7a-931a-6ae9321f5514 Netherlands (NL)f3314b93-65cb-4cf2-abbf-781a5d0676a6 Finland (FI)79e10286-6325-4f00-b19e-8c65c15a7115 France (FR)a7bf3ed2-55ff-476f-bd6f-474f1cd7d5b9 Greece (GR)82e1e544-96de-441f-9d46-4b42a3fe1587 Denmark (DK)ea58df20-8e68-4e7a-971d-3dd63bf8e621 Germany (DE)dbb213fa-9a99-4f05-9adc-39dbbc4038a2 Germany (DE)0a67407f-84cc-40b8-bd1e-61dbbe749032 Belgium (BE)0d21afb0-4e14-4609-afd8-7ad27cc70c85 Bulgaria (BG)f3d5b044-3df3-4c5d-a32a-4fafbf94cd6c France (FR)51eed759-b5e1-43ce-8914-1fef526584dd Croatia (HR)10bdb1d3-8cf9-465d-a131-824c7692153d Germany (DE)30dcc3d8-ac8d-4a8b-bb19-d8f07234c953 Germany (DE)32b49cf7-dbeb-4fb6-a638-0dd91c94caa6 Belgium (BE)e7004a07-9621-474a-bf81-099e9eaadfc2 Spain (ES)7eafc361-6322-47c2-ac59-5a1e4dc88732 Hungary (HU)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZBSUELBF000A000000XX
