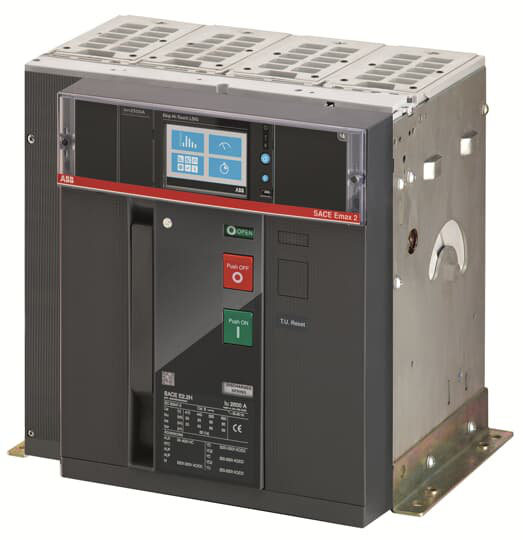

ABB 1SDA071674R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E2.2S 2000 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/TOUCH-LI R 2000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2S 2000 Ekip Touch LI 4p F HR
ABB 1SDA071674R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0123
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 10000 cycleUe = 500 ... 690 V 8000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 212 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 2000 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 85 kA(400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 66 kAfor 3 s 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA
- Rated Uninterrupted Current (Iu)
- 2000 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Touch LI
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- E2.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 53 kg
- Product Net Width
- 366 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 10cc2641-1724-48c1-a5bf-64f5516f2d3f Italy (IT)
- Simplified SCIP
- 79538d3e-5b0d-48c6-b4e3-fd0e5993e893 Poland (PL)8601d0c5-b348-4e1a-ac43-7e56e1777ca9 Hungary (HU)75780db5-060f-4ff5-b3ac-0c901b52a7ec Belgium (BE)14233f8a-c785-4375-9a55-b02096604a6f Spain (ES)cf2b7619-3188-42c3-ab54-9fd241a2f9ce Portugal (PT)ff3abd11-06cb-4607-bcaf-d5dcf97da8cb Sweden (SE)a4f849a0-4b07-45fd-8e26-7b098d182cb2 Czech Republic (CZ)db1632a7-3ecb-42f8-b68f-1eefb1864a0e Poland (PL)f020c598-c96e-4ec1-971d-c1d19c041fe8 Belgium (BE)e51a94ab-97da-4b87-abc3-ced6cc09f6a4 Estonia (EE)f514ba7a-af8a-483c-8cb7-1be968d692f7 Sweden (SE)d2dbefeb-f9cc-4def-90e5-dd62eb2c6b33 Netherlands (NL)b47ec685-49bf-449d-aa81-28b31c4035cc Finland (FI)3ce93e10-bab4-4098-9b37-90eb9e826985 Greece (GR)c11650ec-1c83-43c6-82d1-b7864883e9c2 France (FR)aeb13a82-0c5e-4819-be79-75a3d242b336 Bulgaria (BG)f435c010-7b72-4cf5-a485-5e8d494027ef Denmark (DK)0ef4717e-1388-4c25-b64f-7d58b230d9a7 Germany (DE)59b5cab4-cb4c-44f1-b34b-fd7dcc87a707 Germany (DE)13f4ca5a-4ada-4291-b9fd-62a89e8e956f Germany (DE)c57f1535-51b8-44db-8efe-be40b2818640 Germany (DE)cc1a77fb-af8d-4d60-b706-06abc67985bc Croatia (HR)17295730-9369-47a2-aa8b-26b2aa1da53b Norway (NO)2922438c-fa48-42aa-a2da-8e70f19e6ff1 France (FR)575cb962-28bc-4f08-9d5e-f5b288c67cf3 Hungary (HU)41e0b99e-0f69-406a-86f7-3c0df6c93eee Poland (PL)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZBSTEKBD000A000000XX
