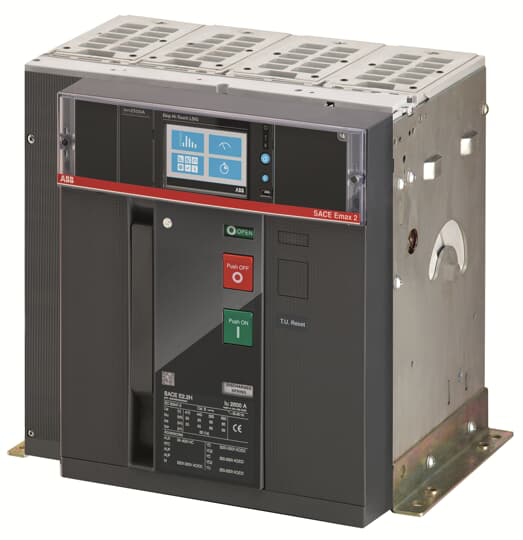

ABB 1SDA071669R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E2.2N 2000 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSIG R 2000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2N 2000 Ekip Hi-Touch LSIG 4p F HR
ABB 1SDA071669R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0123
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 10000 cycleUe = 500 ... 690 V 8000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 212 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 2000 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 66 kA(230 V AC) 66 kA(380 V AC) 66 kA(400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 66 kAfor 3 s 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA
- Rated Uninterrupted Current (Iu)
- 2000 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Hi-Touch LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- E2.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 53 kg
- Product Net Width
- 366 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 3a4132ee-f344-4851-9548-60d9a92f1ad9 Italy (IT)
- Simplified SCIP
- f5394adc-c1c2-4168-b83d-f435fd250ea3 Hungary (HU)2659ade6-8844-4518-a82b-74c5880dc26f Belgium (BE)b8849bda-54af-4f52-a960-e185333c125f Spain (ES)c0223ce4-7453-407a-84a3-12c4ce73ce1b Poland (PL)18dc11ef-bd9a-479c-9892-e05b2993aa47 Hungary (HU)363dd768-63a3-4cc3-9bec-7686a4440949 Norway (NO)43a09334-3471-4ec0-b7d4-af8633b92508 Poland (PL)7f3ddf22-94c7-4c9e-84ae-fe88809a5058 France (FR)ba249e6a-ad17-444b-ab2e-b20079d6d47b Bulgaria (BG)c6896f3c-4ae0-491d-914f-9c795986a4ed Croatia (HR)8a7b7af1-86a9-4595-a59b-5863cd8e1a27 Germany (DE)2c0d6231-8709-4c47-8e15-888966d110b6 Germany (DE)e5b816e9-76de-4b6e-bea1-712b54098aef Estonia (EE)cd7c5d32-4c71-413c-8cd6-420da74969f3 Belgium (BE)5de17713-ad29-499b-89f0-2c9308b43640 Sweden (SE)bece4de8-0ef3-40b5-b02e-d1c4d33a943c Greece (GR)fbc19409-3d53-4fe6-8ad7-f6190c3cc4be France (FR)a899ded6-b8c5-4fcd-a996-0168f5b6bf50 Netherlands (NL)8885989e-cf6b-44ee-a24f-9deb91e82f5d Finland (FI)29e9ec7f-5b87-43e3-ac72-ebf9c3d071a7 Germany (DE)4e90d549-e94d-4ba5-a5d9-8f161c937176 Germany (DE)97e27791-3a36-43e3-8cef-8bf3d0f456e3 Denmark (DK)d9c38cb9-524a-4327-977a-059a931cca7d Poland (PL)c21a2260-5d5a-4ece-8b04-12a7b1a1887a Czech Republic (CZ)a60f1a69-59b0-48a6-8271-2c3db3db9d45 Portugal (PT)f2762db8-ac52-4d69-8612-a104d75caeeb Sweden (SE)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZBNTEKBK200A000000XX
