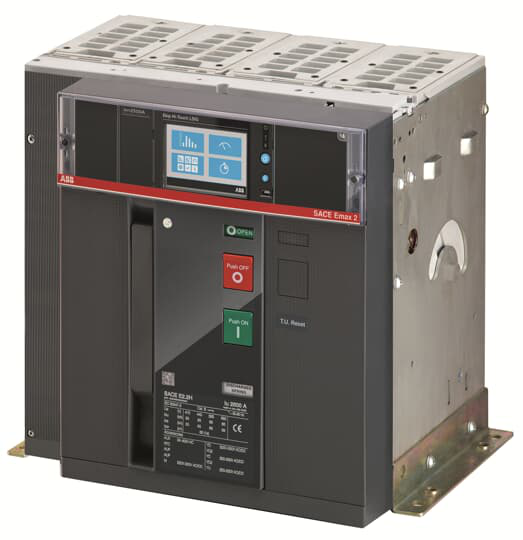

ABB 1SDA071614R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E2.2B 1600 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/TOUCH-LI R 1600 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2B 1600 Ekip Touch LI 4p F HR
ABB 1SDA071614R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0123
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 12000 cycleUe = 500 ... 690 V 10000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 136 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1600 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 42 kA(230 V AC) 42 kA(380 V AC) 42 kA(400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 42 kAfor 3 s 42 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA(500 V AC) 42 kA(525 V AC) 42 kA(690 V AC) 42 kA
- Rated Uninterrupted Current (Iu)
- 1600 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Touch LI
- Release Type
- EL
- Short-Circuit Performance Level
- B
- Standards
- IEC
- Sub-type
- E2.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 53 kg
- Product Net Width
- 366 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- b76917b2-3118-4ae8-ab6c-c9b187febfa6 Italy (IT)
- Simplified SCIP
- c2b30478-6474-46dd-b4b6-a00d4ec5a3b9 Poland (PL)f2774f31-c183-46bb-8542-f73eb7ac6da4 Hungary (HU)ae934500-898a-46a2-a034-8846a9ab861b Spain (ES)14baefdb-66da-4641-8039-562cc11d94ff Belgium (BE)f10db918-0aff-4b52-81ff-fdbc162112b7 France (FR)7dd93e35-c0c9-4503-aea3-d680aa23ce58 Finland (FI)65d39d35-3aa0-4c80-89f5-36a25472bb86 Netherlands (NL)b9971b0d-963d-450b-9253-71c836049e9d Poland (PL)fc96341e-7731-492c-88a2-26015e451d4f Norway (NO)fb4d8f21-d2eb-4fbb-a8c6-282d1f685311 Hungary (HU)f6db9496-b6e3-45e9-a662-c8d5d348db69 Sweden (SE)4ed7775f-f4c6-4574-af96-c07f319b0dec Greece (GR)bf0ff894-6577-4e6c-be69-23309283ad58 Estonia (EE)deb315dd-ded4-48bc-8229-8c8b3ff97349 Germany (DE)a9385cf2-5650-4140-a4af-dea15d786d26 Bulgaria (BG)21db4c19-032e-4de6-81c7-0fcda57bd3f6 Belgium (BE)80b2a29b-6108-4942-b26f-a9d2ec646c8d Germany (DE)334179a4-1c48-4df4-8233-97808e3a3add Denmark (DK)3ef1fcc9-d97f-49e3-8fb2-08125f50be1f Germany (DE)5790bf8f-cd8d-4738-b7a3-2bcdb91f84b8 Germany (DE)5d547f13-6757-413b-a56e-6061ca23dfe1 France (FR)c389bb78-5d26-4788-b332-d6a9d27a65ee Croatia (HR)376bbc87-4e71-4d70-b0f6-e3a486337723 Poland (PL)ac8bdc07-7735-4b63-946c-9eb901df7885 Sweden (SE)a7eb9686-583c-4d70-9dc9-7103942efb13 Portugal (PT)53addd3d-9b41-4260-a04b-435aee12e385 Czech Republic (CZ)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZBBSEJBD000A000000XX
