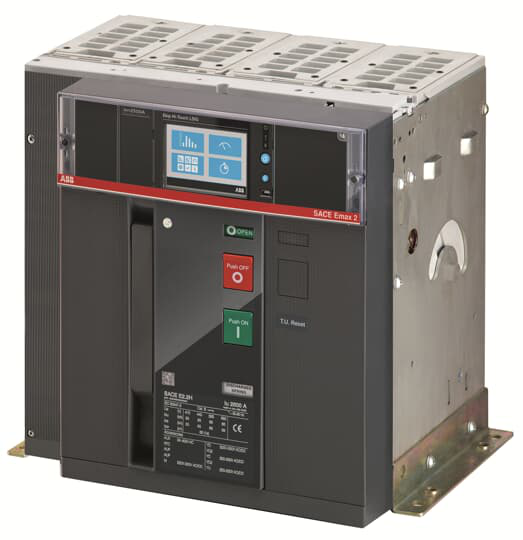

ABB 1SDA071585R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E2.2N 1250 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSI R 1250 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2N 1250 Ekip Touch LSI 4p F HR
ABB 1SDA071585R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0123
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 15000 cycleUe = 500 ... 690 V 15000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 83 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1250 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 66 kA(230 V AC) 66 kA(380 V AC) 66 kA(400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 66 kAfor 3 s 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA
- Rated Uninterrupted Current (Iu)
- 1250 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Touch LSI
- Release Type
- EL
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- E2.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 53 kg
- Product Net Width
- 366 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- df61744c-fa97-4065-8b73-9024db433eba Italy (IT)
- Simplified SCIP
- 455d5b54-9e37-4620-a466-b9348d1f854e Portugal (PT)48458111-788b-43cc-a1a4-31aded3202d1 Belgium (BE)0b8c685c-7d89-4834-8af1-efcf8ae45546 Spain (ES)b617b5ac-d93a-4f26-aea8-92b0afb1ad9f Hungary (HU)cb9c0514-46a8-402c-8bf4-5366cd801997 Poland (PL)63097ac0-ff48-42bd-9631-5e2588540f34 Germany (DE)635fdf25-31fe-4f53-ac35-0e675f2bc8e7 Belgium (BE)ddb15a6b-0d8a-494d-b1bd-f7e2c06c2f2f Germany (DE)cb10671c-5b2a-4cd5-9e4f-0b5f583ea288 Sweden (SE)7d97fb10-4c2b-4aa0-bb58-b4a3d3ebfc02 Finland (FI)48e4c459-1bc2-4a43-832a-a630a625470a Greece (GR)4ed9964f-283d-44d9-9d49-1a6fa3ed2d04 Estonia (EE)bc4a67ab-d713-42ae-bf78-1f6fddce8e38 France (FR)a44560a6-c4b0-455b-8b83-923f1c8cbe76 Germany (DE)57ee1664-44bf-4740-a557-c00998668263 Germany (DE)f9a6000b-13e7-449e-9fad-0ba2e18adf65 Denmark (DK)29e7b160-2b01-440c-b6bc-740c4f91cf4c France (FR)9fc27c61-6837-4881-a343-a77fbeffdc8e Croatia (HR)4a865bc4-7ed5-4b17-ac8a-4699b62b4518 Bulgaria (BG)c1db22af-de82-4f28-8d27-fe9c8c0445a6 Netherlands (NL)137d7c20-847e-44fc-b173-d1fb1b00ed8b Norway (NO)37024262-b382-4a8a-8f54-5c1e2f9ef334 Poland (PL)bacfc6a1-6142-406d-b771-aaf68e6659ba Czech Republic (CZ)89be995e-36ca-4be1-b493-85684d9d98ef Hungary (HU)7f37ed85-4cc0-4275-b1c8-3b1b6cadabbd Poland (PL)80b9d86c-c847-48b1-a078-fa04de529efd Sweden (SE)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZBNREHBE000A000000XX
