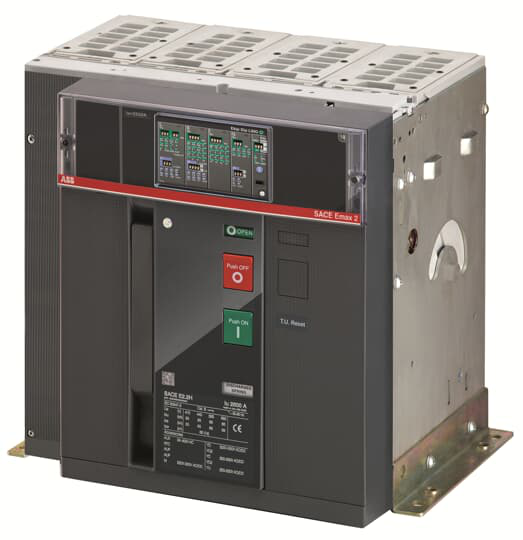

ABB 1SDA071551R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E2.2N 1000 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/DIP-LI R 1000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2N 1000 Ekip Dip LI 4p F HR
ABB 1SDA071551R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0123
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 15000 cycleUe = 500 ... 690 V 15000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 53 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1000 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 66 kA(230 V AC) 66 kA(380 V AC) 66 kA(400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 66 kAfor 3 s 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA
- Rated Uninterrupted Current (Iu)
- 1000 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Dip LI
- Release Type
- EL
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- E2.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 53 kg
- Product Net Width
- 366 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- a1a36d57-736d-484b-9eb7-6e6849cf9646 Italy (IT)
- Simplified SCIP
- b3b9903f-575f-43c0-af10-410a6825e15c Hungary (HU)0a315ff0-4fc3-49a0-b14b-bae5cf5eec23 Belgium (BE)6ca57a7b-0401-443c-a420-26abe7b5620c Spain (ES)fdc9c0b9-b9d1-456f-8875-26f7cbbbca9b Norway (NO)76cb3f1c-6192-4acd-a5a2-cd327b3e1f7b Poland (PL)0bf9acfa-f965-42ac-8496-dbce9a9f5c88 Hungary (HU)d8da7285-1b55-4d7f-9d52-2d54ffbb4bda Germany (DE)beeb9f45-c5f6-4499-9b32-7799fa0a9907 Denmark (DK)ca62c5de-5cd0-4118-a4e3-fa3efd215242 Germany (DE)7a4282f7-fa21-437a-865a-aaa9ce864703 Belgium (BE)2e7dc358-ac4b-4e6c-8c8c-12efddd3b36e Sweden (SE)94b5a21d-01bd-4852-b113-e4e715a9acea Estonia (EE)43dd7adf-1c24-413b-bc2f-ec79861c2ff9 France (FR)d79ec58b-1596-4ba4-a182-9da43645249f Finland (FI)61a4ef4a-163a-41ea-abcf-41db5a4ba739 Netherlands (NL)4bebc7ee-dd1a-4e94-b719-45e47577ad11 Greece (GR)e71c8f96-adc5-489b-a180-1c155154d162 Germany (DE)6d6e8b2c-b2be-47ba-8ccb-0cdde92fee56 Germany (DE)f514cc91-6800-4aa2-9a78-8da5bd915d93 Croatia (HR)c17cd921-824a-4a5b-87fa-ffe304fdd0e2 Bulgaria (BG)525e4fe7-3715-4d54-8e64-4567fd09af6c France (FR)22d649e8-b98a-4ab6-9ae7-9b2a3413da89 Poland (PL)8c3743e9-7ac2-4f9a-aa1f-da5e8948d218 Poland (PL)2f3d467a-0da4-43cf-8379-4fa24bd54490 Sweden (SE)2b9f46ff-a3c5-4ab2-bf9d-c57c3ad5d09f Portugal (PT)c518f5b4-3463-4344-8187-d3a36ad6c664 Czech Republic (CZ)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZBNQEGBA000A000000XX
