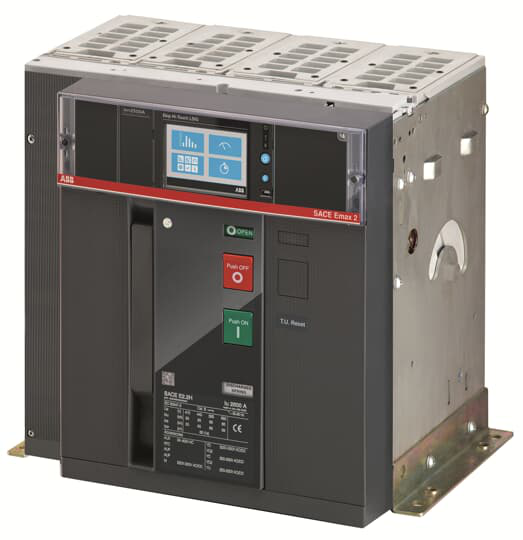

ABB 1SDA071548R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E2.2H 800 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSI R 800 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2H 800 Ekip Hi-Touch LSI 4p F HR
ABB 1SDA071548R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0123
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 15000 cycleUe = 500 ... 690 V 15000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 34 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 800 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(660 V AC) 85 kA(690 V AC) 85 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 85 kAfor 3 s 66 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(525 V AC) 85 kA(690 V AC) 85 kA
- Rated Uninterrupted Current (Iu)
- 800 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Hi-Touch LSI
- Release Type
- EL
- Short-Circuit Performance Level
- H
- Standards
- IEC
- Sub-type
- E2.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 53 kg
- Product Net Width
- 366 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 80828c5c-34ff-44cf-9751-d8c6bc4e6d95 Italy (IT)
- Simplified SCIP
- 8978011c-4a9f-4227-b6a1-c5115fd27ba5 Sweden (SE)6e8afd27-b512-47ae-ad0f-6f1e7f580cba Portugal (PT)28663e31-06c2-4802-b74f-4da073d51350 Poland (PL)0c6fc08e-da49-455b-95da-fc36cff195cc Poland (PL)902c14ac-4113-4a60-bec7-a232632dbeb1 Czech Republic (CZ)9fe0c174-8f5d-46dc-bd01-c6e81a8c4fb6 Belgium (BE)dbed2743-afd1-4f14-afe5-b6c1d264dfa2 Finland (FI)f42a73c2-3cd7-4702-aa83-749d169f2f6b Greece (GR)edcc67d3-eb99-4a01-93e0-69621c8cb527 Netherlands (NL)c4d68e50-b7c0-4082-86b8-65b21226504a Estonia (EE)3dcfb7fe-8293-451d-87a3-67ab9e804334 Sweden (SE)19c01223-eb49-4df3-a619-7c57c0fce625 Bulgaria (BG)d084ed44-7f00-4aea-94f3-a052a4ad8dae France (FR)2327f261-adfa-46bb-ba63-e4985515a65d Croatia (HR)34dafd24-c09f-4b75-b962-8284a186aed0 Germany (DE)227e02d5-15c6-4387-bea5-e3f2313daf83 Germany (DE)2f9e0815-6f28-43c4-aae0-2d9e22c136f8 Germany (DE)4c74e5c8-94fa-4975-9bac-ddab0159dc7c Germany (DE)7976933a-e361-4118-8e0d-8850cd4a6af2 Denmark (DK)1965c8f7-706b-4047-8f5c-f4a3b6c90e7a France (FR)26a961e9-d85c-405e-9303-2fe89b95203a Norway (NO)3618cdf6-c1cb-4cde-ae85-d2c1739c61f0 Poland (PL)9a2caa11-5a1c-4091-afde-d33244cdca51 Hungary (HU)be3f130e-ca54-42b4-911a-c48f89387209 Hungary (HU)b6a09759-2e2a-4634-b6f8-327366cc6c4c Belgium (BE)68940a30-b952-459c-a2d5-1bb66cf6fbcb Spain (ES)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZBHPEFBJ200A000000XX
