ABB 1SDA071543R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

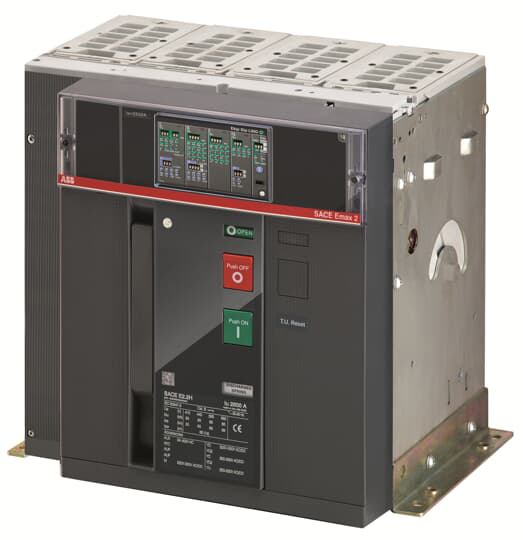

C.BREAKER SACE EMAX2 E2.2H 800 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/DIP-LSIG R 800 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2H 800 Ekip Dip LSIG 4p F HR
ABB 1SDA071543R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0123
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 15000 cycleUe = 500 ... 690 V 15000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 34 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 800 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(660 V AC) 85 kA(690 V AC) 85 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 85 kAfor 3 s 66 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(525 V AC) 85 kA(690 V AC) 85 kA
- Rated Uninterrupted Current (Iu)
- 800 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Dip LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- H
- Standards
- IEC
- Sub-type
- E2.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 53 kg
- Product Net Width
- 366 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- b1b87667-37e3-4184-ae78-60e76c0ea618 Italy (IT)
- Simplified SCIP
- 7ba5fce9-a086-4a59-bf38-35dfe190fa63 Czech Republic (CZ)405cc2d9-0ea3-402c-ba68-37f87f78d054 Norway (NO)8a6fa3cd-5fdf-40bf-8d92-17bcc8de344c Poland (PL)4c032252-2be2-46cb-9740-cbd02f636814 Hungary (HU)9313cec0-dd5e-494e-a3e8-975abd3e02e6 Germany (DE)a8c7d362-e920-4936-aad4-7d170eb9f844 Germany (DE)e90439af-b52f-488e-8c61-51262bc8bc1b Belgium (BE)8c70cd71-63ed-46bc-9c9f-9e7ad9ab994f Sweden (SE)050b7a15-107b-48b3-89a3-fe7af7d15a1a Netherlands (NL)cc3f4f21-6b99-469d-89da-4b9af7ed6139 Greece (GR)8c7b17d4-ee25-42bd-9ebd-46b1b263bab1 Estonia (EE)18ce10ea-1273-4bcf-845e-f3ebad862d79 France (FR)26f4ae7f-888a-45f7-a866-4c2ee87231bf Finland (FI)bb26c445-dd42-47e8-b85a-f92d998523c1 Germany (DE)c5b844bf-7f0a-4361-830b-b34e53710216 Germany (DE)d19b3754-6f69-475a-8ad4-d6bf016ff065 Denmark (DK)1ebdb87b-334c-4ef6-82c9-8a5f1ab6e872 France (FR)3acbcdbd-51de-4421-aef0-03a8766815e7 Croatia (HR)e2378b99-7934-41b4-9ec1-3c4c28458950 Bulgaria (BG)479238f4-334c-464d-a29f-79b311644567 Portugal (PT)741b8a96-56c8-46f9-8d8a-ae21b45074a9 Sweden (SE)bb09616c-1141-4013-b5c9-8c2950778924 Poland (PL)9cc367d0-c55a-4859-9d9f-3d842dfefa5b Poland (PL)f6894d12-51e4-4f2b-8d86-cf4f419ebc8e Hungary (HU)6b19fe76-2d54-4172-868a-bc96bb55cb57 Spain (ES)3f9c4e85-dc81-4ced-ab51-1d037aa45352 Belgium (BE)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZBHPEFBC000A000000XX
