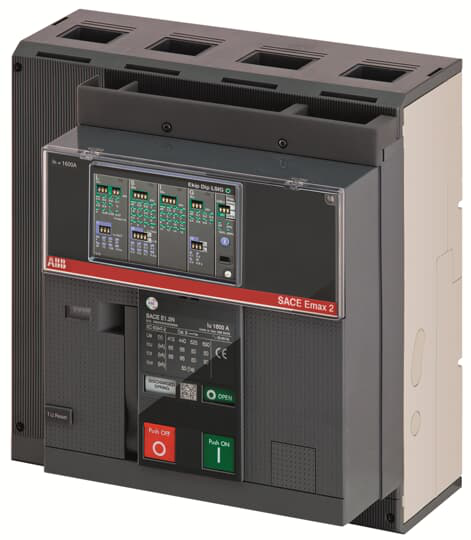

ABB 1SDA071491R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E1.2B 1600 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP/DIP-LI R 1600 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE1.2B 1600 Ekip Dip LI 4p F F
ABB 1SDA071491R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0042
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 3000 cycleUe = 500 ... 690 V 6500 cycle30 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 201 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1600 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 42 kA(230 V AC) 42 kA(380 V AC) 42 kA(400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA(500 V AC) 42 kA(660 V AC) 42 kA(690 V AC) 42 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 42 kAfor 3 s 24 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA(500 V AC) 42 kA(525 V AC) 42 kA(690 V AC) 42 kA
- Rated Uninterrupted Current (Iu)
- 1600 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M10
- Release
- Ekip Dip LI
- Release Type
- EL
- Short-Circuit Performance Level
- B
- Standards
- IEC
- Sub-type
- E1.2
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 45 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 76.4 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2360
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 183 mm
- Product Net Height
- 296 mm
- Product Net Weight
- 16 kg
- Product Net Width
- 280 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1900 9AKK108468A3028
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 24b5ed54-9181-4991-8fa5-fff30270d6f4 Italy (IT)
- Simplified SCIP
- fc7763f1-59cf-41c5-9cd0-81773dc7830e Germany (DE)f0bce417-f16f-4f56-a53b-25f6f7a014bf Denmark (DK)f49cdebd-7b3f-45bc-9b48-bede10e08b2f Bulgaria (BG)f115e15f-d31b-4503-a1ab-f4f670570757 Belgium (BE)84262c8e-3443-4a6e-93ef-143b098f264d Germany (DE)2269ddc4-3fd9-4501-827c-7f1706092cb2 Sweden (SE)95ba22ef-86de-4ce0-8877-600c241c7e26 Greece (GR)3ff76fd2-b2b4-4a73-9e0e-f50c45d4aff6 Estonia (EE)cec6b913-201e-4977-b064-5a4d336373f2 France (FR)59e0e7ac-f6ac-48e0-9834-04a85df1603a Germany (DE)d81dd6a8-482c-40b1-b8f6-fa3632e5cf7c Croatia (HR)f2d7768e-ec3a-4821-ab66-b546da0851cb Germany (DE)f22c8903-7fe7-4c99-98ca-4a5a8c9ea2e3 Hungary (HU)43b23e6d-ce14-4944-a261-8da0b1e0a135 Norway (NO)6252c2bd-b7e8-4c6d-ba87-0a5e58ef5408 Poland (PL)759b0a9c-b52e-445d-8ef8-2c4cad87e54e Netherlands (NL)f4156e68-dcdd-4f6a-b099-f306a846ef0e France (FR)a48977fb-a60b-4066-a610-695f1945998a Finland (FI)1c86c5b9-a42a-4df6-a006-cfd53173dcbf Portugal (PT)4a955141-7aec-484c-81e2-b5bb55585cc7 Sweden (SE)40d0b63d-eecb-40d7-8d30-def8343412c6 Poland (PL)6b1080ea-f91d-4154-be0e-7c74a4933267 Poland (PL)afd5e4c4-e630-4c4d-8ca1-6d5074db6663 Czech Republic (CZ)b64d6801-0856-4e66-bdbb-0d6ae4474e2e Hungary (HU)f67c19d8-19a8-4a57-af16-19aa232b3517 Belgium (BE)769923c8-957f-4a2d-a076-57d11ffde6e3 Spain (ES)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZABSEJBA000A000000XX
