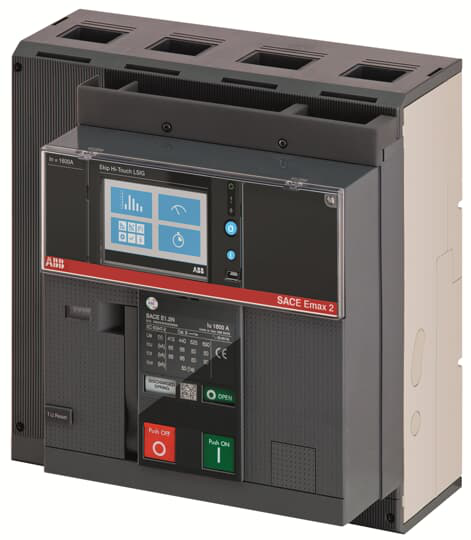

ABB 1SDA071339R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E1.2B 630 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSIG R 630 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE1.2B 630 Ekip Hi-Touch LSIG 4p F F
ABB 1SDA071339R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0042
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 8000 cycleUe = 500 ... 690 V 8000 cycle30 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 31 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 630 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 42 kA(230 V AC) 42 kA(380 V AC) 42 kA(400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA(500 V AC) 42 kA(660 V AC) 42 kA(690 V AC) 42 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 42 kAfor 3 s 24 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA(500 V AC) 42 kA(525 V AC) 42 kA(690 V AC) 42 kA
- Rated Uninterrupted Current (Iu)
- 630 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M10
- Release
- Ekip Hi-Touch LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- B
- Standards
- IEC
- Sub-type
- E1.2
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 45 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 76.4 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2360
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 183 mm
- Product Net Height
- 296 mm
- Product Net Weight
- 16 kg
- Product Net Width
- 280 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1900 9AKK108468A3028
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- a0e30b14-8eb1-470d-a58d-1384b140d7e0 Italy (IT)
- Simplified SCIP
- 0dfbc28f-4e2e-4a35-baab-59c1a80d25bb Hungary (HU)4f2cebba-413a-4ee2-bff4-1eb57f44d7d5 Spain (ES)5ca8c178-42c4-41b2-a6ec-aa04ee41ad36 Belgium (BE)b47c550c-3b80-47f7-af98-3a3fe45ac5f3 Sweden (SE)809e2bfb-423c-46e4-bb31-05428f7b1e41 Portugal (PT)d7741677-e772-4b2b-87df-434f69141234 Poland (PL)533759b9-27ab-413b-88a1-88e3a9483fb1 Poland (PL)88d74197-0ca3-4dd8-8a1e-8ffd54152a97 Czech Republic (CZ)88989f7e-160d-4824-8f9f-8be252e1aeaf Hungary (HU)d7dc7e2f-1953-4bbd-a083-f8b1d323c108 Poland (PL)b3aff4c5-0937-454b-9e2f-3348f9539e11 Norway (NO)4140686d-383b-4cd2-a0d0-8aaa27ab0fda Greece (GR)c1dbd41c-377e-41e1-9b93-cdfe9f88fecb France (FR)c51885fb-4033-47c7-8aa3-712c1d3bd3f3 Finland (FI)1d6937c2-0813-4c41-9fe1-27771b19f9dc Netherlands (NL)1a2d3932-40ce-4a07-8df1-cacef21669d8 Estonia (EE)b506aabc-644d-473d-843c-b76adce48a2d Sweden (SE)9d02d73f-ea09-414e-9245-f4e14f23bb15 Denmark (DK)d034636a-b026-40cb-810a-e5d3464bd08a Germany (DE)57e3c332-8bbd-4f43-a64b-27ece965e781 Germany (DE)875920ca-0100-401e-a219-07bb957caece Belgium (BE)f734b5b5-b608-493d-a4f9-61d7e87ea760 Bulgaria (BG)bb43253e-4b6b-4475-ac10-f610b303d60b Croatia (HR)6bf8adce-b8ce-4013-9129-963ffe2c3842 France (FR)8c000b08-82f3-40b9-b02a-d4d653e9c20d Germany (DE)1d982ae1-a525-41ee-9a8b-9221870864f9 Germany (DE)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZABNEEBK200A000000XX
