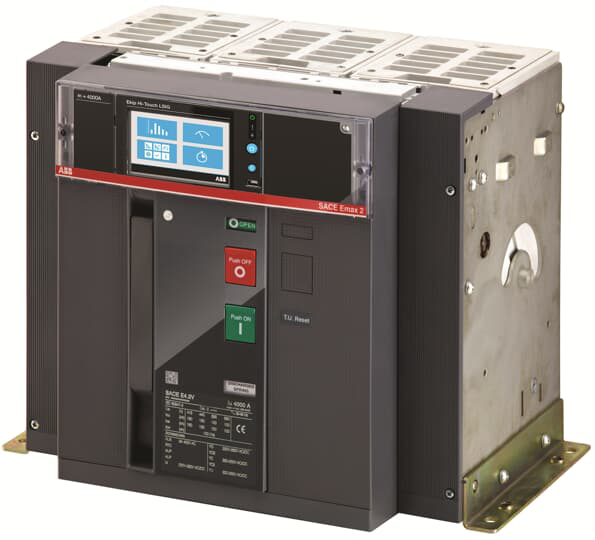

ABB 1SDA071176R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E4.2V 3200 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSIG R 3200 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE4.2V 3200 Ekip Touch LSIG 3p F HR
ABB 1SDA071176R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0171
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 7000 cycleUe = 500 ... 690 V 7000 cycle20 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 425 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 3200 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 150 kA(230 V AC) 150 kA(380 V AC) 150 kA(400 V AC) 150 kA(415 V AC) 150 kA(440 V AC) 150 kA(500 V AC) 100 kA(660 V AC) 100 kA(690 V AC) 100 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 100 kAfor 3 s 75 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 150 kA(415 V AC) 150 kA(440 V AC) 150 kA(500 V AC) 100 kA(525 V AC) 100 kA(690 V AC) 100 kA
- Rated Uninterrupted Current (Iu)
- 3200 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Touch LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- V
- Standards
- IEC
- Sub-type
- E4.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.3 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2363
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 56 kg
- Product Net Width
- 384 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1904 9AKK108468A1910
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 0495185d-eae4-4558-8ee4-e472df76de13 Italy (IT)
- Simplified SCIP
- 8faa276a-989a-47f2-b147-3c7a3a4d15ae Germany (DE)93b897a4-108e-4373-a56a-680b76c43559 Bulgaria (BG)0469dd29-4ebd-49e9-8ec7-aad2c9a1fa95 Germany (DE)d6ee42a5-764d-496b-b54c-2aa636b44d0b Germany (DE)2a78f008-ab52-48a9-9ebf-82b0a1e172c7 France (FR)efd524f4-1dbf-4a1c-b734-2b0d8f5c7306 Croatia (HR)034887a5-10f3-443c-91bd-76e36968b386 Spain (ES)cef958ea-ddb5-458b-9dab-2974d8a5e977 Belgium (BE)06e1cbe2-8a3e-415e-8d38-6eb89298122a Poland (PL)f4c74e90-42bd-4ffe-bd48-a3b9c9e836a0 Poland (PL)10762746-a006-449c-adef-0a0171b240d6 Czech Republic (CZ)ab8140bc-ce60-4ee0-8838-e18de8c338dd Sweden (SE)58ec1b49-10d1-4129-a93c-7a68faf7e897 Portugal (PT)e1e56f06-7f20-4afa-86f4-f3bb4a0fcd96 Hungary (HU)7af288be-f7a5-48cc-acc1-17adfcdd49d2 Hungary (HU)5ddc3f95-e9e1-46c5-9fae-48bd9e525c17 Poland (PL)923827ba-03e3-48e9-8d19-0910a6a7418f Norway (NO)4018609f-1217-44b5-a6c3-29a46151f5ec Sweden (SE)611d3db3-171f-4539-a718-049b29d70750 Belgium (BE)aec8a415-4af6-4dba-8750-4347bf72651c Estonia (EE)9c90e0b2-4fd0-4cbc-af4f-4d734f38cd0e Netherlands (NL)eda19fac-d691-443a-82a4-6b646418b5f4 France (FR)7f92b99f-061a-49cf-851b-2e6e6651f2a3 Greece (GR)7994be19-3bf2-4314-8703-77d1f3fd337f Finland (FI)49ee0786-8596-459b-928b-dc126d38904a Denmark (DK)19522dfb-2e44-4d3c-8384-cb0e20b50f2f Germany (DE)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z4VVENBF000A000000XX
