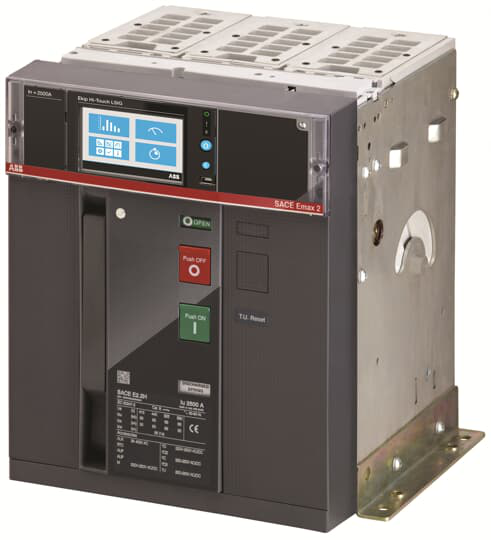

ABB 1SDA071048R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E2.2S 2000 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSI R 2000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2S 2000 Ekip Hi-Touch LSI 3p F HR
ABB 1SDA071048R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0083
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 10000 cycleUe = 500 ... 690 V 8000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 212 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 2000 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 85 kA(400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 66 kAfor 3 s 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA
- Rated Uninterrupted Current (Iu)
- 2000 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Hi-Touch LSI
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- E2.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 41 kg
- Product Net Width
- 276 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- a2d89988-e42e-453e-931e-f6f37ca16dbc Italy (IT)
- Simplified SCIP
- 272b19e5-9090-45b4-a731-36eb9624325f France (FR)90b595c3-4580-457b-b1d7-94eb505e15d1 Norway (NO)a3571a66-1b26-4637-9c15-0a7bcdd1fc95 Poland (PL)c6fcbf49-7da1-4b08-a86d-949283da7a46 Hungary (HU)d483a4ae-b9d7-4881-b60a-97c0c82650c3 France (FR)caa3faae-1b33-4dfa-bf38-3fc870813498 Bulgaria (BG)86930bc1-b812-41c9-9d8b-21466f096485 Germany (DE)3d389629-16df-4f19-9cef-164cb62ce371 Croatia (HR)1aab9b9d-b75e-43d8-b65c-46cfb0e66597 Germany (DE)26b9d7b5-79ea-4a33-bf5c-3a47b1177041 Belgium (BE)24cec120-1498-4180-af91-7ad1f823b958 Finland (FI)73f323cc-36e6-4903-a19f-145819b5322a Netherlands (NL)8ffce991-cb54-45f7-a72c-94ab125874d4 Greece (GR)76a6078f-2f16-4424-8460-d637d297d83e Estonia (EE)75aa3df6-9fa5-4a46-ac26-89ae890388eb Sweden (SE)ec904edf-fdb2-42cc-805b-3b2675a8550b Denmark (DK)004d0f09-728b-4702-bb9b-38c16eaf16d1 Germany (DE)99bdf4b9-4649-4101-8871-357ddf018578 Germany (DE)7cbba5e6-9283-4e69-8e35-a2ad642eb021 Czech Republic (CZ)3111b641-c6ed-4c82-8cc1-31f48ea4d678 Poland (PL)e588a2f1-909e-4525-b8c9-66454945e8a9 Poland (PL)254575ec-e22e-4060-b43c-14b62a0e8e82 Portugal (PT)b296f33e-c991-4520-9cbe-699977166925 Sweden (SE)bf2ab24a-5eb6-4711-aa27-a0f910b2022e Hungary (HU)7585c40a-aa7e-4236-8f8c-ff0c45e39e73 Belgium (BE)29dfe5ec-0583-4cbe-8885-fa6446627923 Spain (ES)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z2STEKBJ200A000000XX
