Description

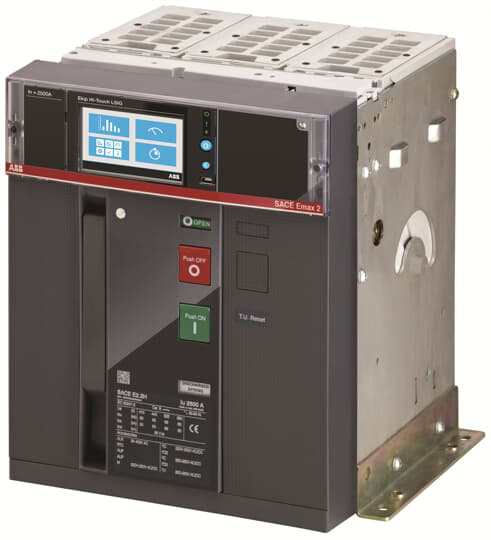

C.BREAKER SACE EMAX2 E2.2H 1600 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSI R 1600 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2H 1600 Ekip Hi-Touch LSI 3p F HR
ABB 1SDA071018R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0083
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 12000 cycleUe = 500 ... 690 V 10000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 136 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1600 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(660 V AC) 85 kA(690 V AC) 85 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 85 kAfor 3 s 66 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(525 V AC) 85 kA(690 V AC) 85 kA
- Rated Uninterrupted Current (Iu)
- 1600 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Hi-Touch LSI
- Release Type
- EL
- Short-Circuit Performance Level
- H
- Standards
- IEC
- Sub-type
- E2.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 41 kg
- Product Net Width
- 276 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- b8ec32ba-1a7a-465a-8946-4fd3eb07e23f Italy (IT)
- Simplified SCIP
- aec6b11e-c4a7-4425-8db9-497687722213 Poland (PL)e746360d-4ebe-4ba1-9d60-26fd57eba97e Portugal (PT)33dcd7ad-d698-48ee-b64b-6371f8b49b25 Sweden (SE)d2618f69-9f45-467a-844c-5acfdc16a331 Hungary (HU)c65e4164-6287-474f-9a2d-120928c30195 Belgium (BE)d42fab26-ba0b-454c-b4a2-762a6a6028a3 Spain (ES)804e57c4-d27c-49d0-8b53-bcf206981b7b Hungary (HU)0a0eed7e-df34-41a5-8496-d33fe1b49ebd Norway (NO)bd4ecc7e-ead2-4271-b4c8-a5d6b62f9926 Netherlands (NL)616137e7-15d1-4793-ab78-8ff6347bbc58 Poland (PL)abb65f00-91c8-4660-bb55-776b2b0894db France (FR)a4445d5a-1934-44f4-9672-ec7179d004ec Finland (FI)9d541959-d0a2-4d5b-8eca-bc20825e9320 Bulgaria (BG)c8727551-76b9-4f7d-a944-ec8c54c2f11e Germany (DE)465d6568-69a2-4f20-90cb-39f6778aa02b Greece (GR)26434299-101c-446e-add0-ad98d91fbfa7 Estonia (EE)b33a470a-769d-45c2-8cb2-cde3e2ab1338 Sweden (SE)b4cf6754-ff63-479e-a35b-14453dcd23fd Belgium (BE)6ea00362-1f89-4f38-83dd-e13179927267 Germany (DE)b40eed49-2f2e-4f39-8ac4-c9843d46139c Denmark (DK)d5eaeac3-fc25-4e7e-b414-8ec1c249dad8 Croatia (HR)f68a9f99-ce8a-4ff6-8b90-7575b22a1897 Germany (DE)25d07c7c-fff4-4d2f-9c1a-a3374617fc79 France (FR)61024a4d-951c-46b9-b154-a088729ce690 Germany (DE)190ecd05-b372-4448-94ff-4d2e6a618746 Czech Republic (CZ)2c2d4d55-7954-49cb-99f9-7c47bc342502 Poland (PL)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z2HSEJBJ200A000000XX
