Description

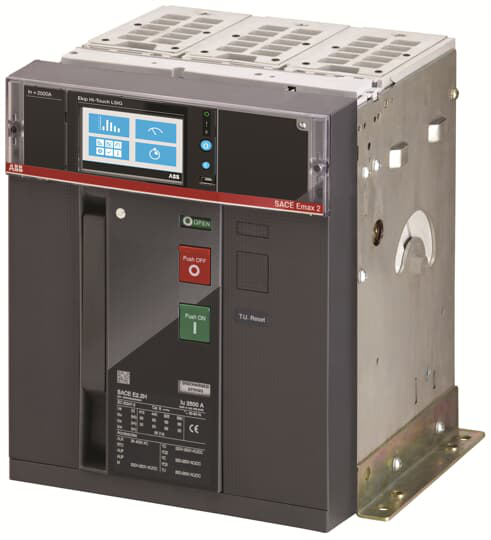

C.BREAKER SACE EMAX2 E2.2H 1600 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSIG R 1600 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2H 1600 Ekip Touch LSIG 3p F HR
ABB 1SDA071016R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0083
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 12000 cycleUe = 500 ... 690 V 10000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 136 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1600 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(660 V AC) 85 kA(690 V AC) 85 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 85 kAfor 3 s 66 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(525 V AC) 85 kA(690 V AC) 85 kA
- Rated Uninterrupted Current (Iu)
- 1600 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Touch LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- H
- Standards
- IEC
- Sub-type
- E2.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 41 kg
- Product Net Width
- 276 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 9e5cbd43-8fb6-48e1-87cd-5dc8217a7ed5 Italy (IT)
- Simplified SCIP
- cbbf5660-8aec-4f9d-bd93-65424b50f482 Czech Republic (CZ)5eec0a7b-1b8a-4597-b0d2-f2f478a84612 Poland (PL)3a621390-ded4-4f1c-841c-6e0288708bcc Poland (PL)a12322e9-7240-4516-b932-a048a617ecc2 Sweden (SE)20d143b6-24c8-42de-80c2-9e119a9ec66e Portugal (PT)96e160e5-08d1-40c6-bf96-287f4cafbf53 Germany (DE)08d5b93e-6d01-4b99-af21-b3acb89fa4bc Germany (DE)26f21a60-8d6d-45e1-9f33-36bf27343e50 Estonia (EE)ac293c58-794e-49c0-a775-f5cabffe41cc Sweden (SE)b2d4066f-3e86-44c0-9c78-7bb72a5fca8a Netherlands (NL)62a6762e-af58-4cdc-9377-b109d5eac976 Finland (FI)501536a2-042a-4cf6-8e86-9270988b32f1 France (FR)66ec730b-6b23-4d90-8a49-c8c2e67b476d Germany (DE)b334c2f4-86b9-4b81-8fa5-07ef5e9d3dba Denmark (DK)a74f6877-11ff-4720-b29b-804dc13107c6 Germany (DE)7ab8f0c3-a583-45a0-96b7-5f64e1e73fb9 Bulgaria (BG)32f24a6a-f419-4096-afa2-2962fe43c208 Hungary (HU)cecbb30a-74df-4350-93a1-5251a8bdc2ba Poland (PL)15f57b43-b133-48b3-b251-ea357c32226e Norway (NO)5796e567-fb2a-414a-b8f9-62cf125d3722 Hungary (HU)52512f79-1ac0-4d65-86f7-0b1528842155 Spain (ES)c9527207-a4d6-47f6-9f5e-a1d4c2336fd8 Belgium (BE)f3512ede-9632-4c68-b8e0-78a46ff7d740 France (FR)05a9b3a8-84be-45bd-8415-3186be21907c Croatia (HR)2a7c92c7-d771-49db-b7e9-9ee7bb2b00b6 Belgium (BE)37889732-ab93-4f52-acf0-ce7977b39cab Greece (GR)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z2HSEJBF000A000000XX
