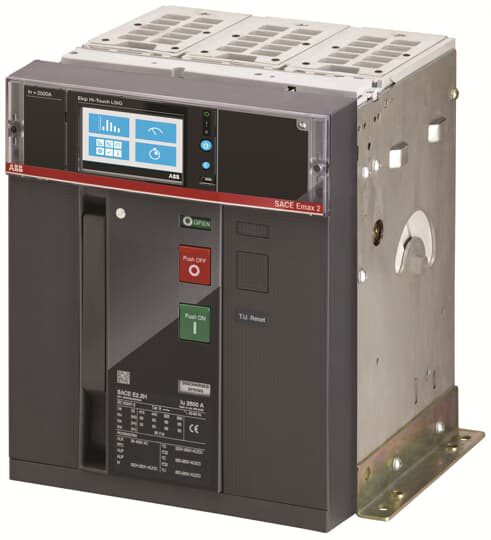

ABB 1SDA070989R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E2.2B 1600 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSIG R 1600 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2B 1600 Ekip Hi-Touch LSIG 3p F HR
ABB 1SDA070989R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0083
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 12000 cycleUe = 500 ... 690 V 10000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 136 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1600 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 42 kA(230 V AC) 42 kA(380 V AC) 42 kA(400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 42 kAfor 3 s 42 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA(500 V AC) 42 kA(525 V AC) 42 kA(690 V AC) 42 kA
- Rated Uninterrupted Current (Iu)
- 1600 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Hi-Touch LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- B
- Standards
- IEC
- Sub-type
- E2.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 41 kg
- Product Net Width
- 276 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- eb7feea5-9751-458d-8ad2-2f63c31b0c39 Italy (IT)
- Simplified SCIP
- e1db96b3-5492-46c9-ae1c-9a32cfdecbcf Hungary (HU)86597123-1e27-4c84-8e03-ea4803b54259 Belgium (BE)4545fc80-6fc9-429f-8292-454476ea1cc0 Spain (ES)69356f5b-b697-499d-8179-dbaf58a5188b Croatia (HR)1a4cd8ef-39fe-4cc6-934f-25395fa79318 France (FR)f3683179-729b-4c85-8fe7-16ad0aeafc94 Bulgaria (BG)75bd7e9a-af34-41a3-8327-92ba501082d7 Germany (DE)e86db012-e385-46ec-8fda-a38f38951a40 Germany (DE)2a675041-a659-41a6-8d4f-85a4c5738a21 Estonia (EE)538a17bf-00d9-485d-9034-2564ca9b8539 Germany (DE)eb2c05ab-6090-4100-bf53-5efc3b3939f2 Germany (DE)12d7c73a-f48a-4346-bf9d-9212112e148e Denmark (DK)4bd7cc76-55e5-4812-82fd-c72e322590b1 Sweden (SE)a835f983-de3a-4de4-b091-98e5d06e9b7b Netherlands (NL)d4e7bf9b-072a-451a-9a9e-8312884c8b7a Finland (FI)6ebd6feb-64d9-499b-b4b5-ceaf27966be1 Greece (GR)baf10d4d-a262-4a55-8ca0-0556d99f9872 Belgium (BE)3b144dd9-fb2b-45fb-b678-2d32f43298d3 Hungary (HU)dc61e717-fc94-453e-b8cf-83ce746e6d67 France (FR)3d3e76b4-9125-4346-9f6b-c3ea98d9e37f Poland (PL)d7320a1a-1ca3-498c-b720-9776c12ae0f4 Norway (NO)9d6603c2-a8ca-458b-9db4-b69b8b5b31e1 Poland (PL)6861973e-4676-4928-93d7-47b27372581c Sweden (SE)319e9960-06d7-4d9c-ad99-510cc417547d Czech Republic (CZ)7e099766-9d02-4cd6-aeb2-5e28f8277a7a Poland (PL)5c2224b0-a1ea-46e8-9399-bd2a3a8e534a Portugal (PT)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z2BSEJBK200A000000XX
