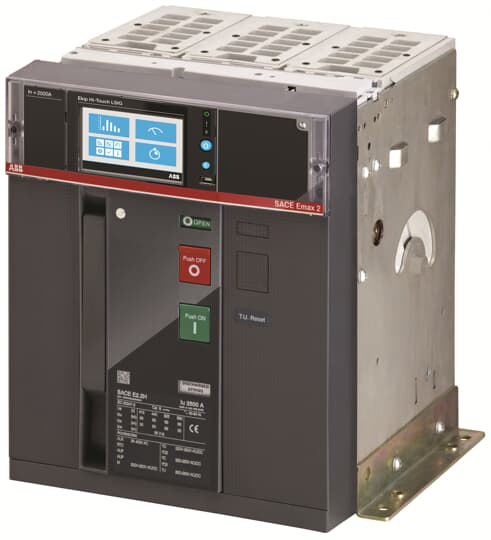

ABB 1SDA070988R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E2.2B 1600 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSI R 1600 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2B 1600 Ekip Hi-Touch LSI 3p F HR
ABB 1SDA070988R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0083
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 12000 cycleUe = 500 ... 690 V 10000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 136 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1600 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 42 kA(230 V AC) 42 kA(380 V AC) 42 kA(400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 42 kAfor 3 s 42 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA(500 V AC) 42 kA(525 V AC) 42 kA(690 V AC) 42 kA
- Rated Uninterrupted Current (Iu)
- 1600 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Hi-Touch LSI
- Release Type
- EL
- Short-Circuit Performance Level
- B
- Standards
- IEC
- Sub-type
- E2.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 41 kg
- Product Net Width
- 276 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 44363055-6fb1-46c6-9be3-e1628de9165f Italy (IT)
- Simplified SCIP
- fc7e5b50-2a7c-4e1e-ba9a-c16329eb0b29 Czech Republic (CZ)63c2c829-e9f1-465e-8c28-4ffac282708d Poland (PL)9e7b684e-4bc5-4937-82da-db705930bad7 Poland (PL)51ad3278-d6f1-48cf-a62a-0ec31259d229 Sweden (SE)4be99ed8-47c5-4840-9425-60d6dae39cc6 Portugal (PT)36d8d155-141c-4cac-a6dc-8f42cfdbf3f6 Belgium (BE)53275218-10eb-4107-bc2a-059f3ceb80b2 Spain (ES)7344b06f-6215-4f1d-9e9d-360a8949b5b6 Hungary (HU)fb67eaa8-336b-46c4-8917-ac687f1deb20 Poland (PL)8ddd4e2c-8345-4034-85a0-ac9ceff4f6f8 Norway (NO)152554ce-5813-4fe5-bbb5-2a1d425087f9 Belgium (BE)0807f0d9-b28d-4b62-a450-7481a231ff90 Sweden (SE)6a873a37-a47e-42b6-b192-2ed2fc2ee680 Greece (GR)59ed8690-64c8-42e2-89d5-0bbbcfd866a3 France (FR)2fbd43cf-16f9-45a5-b2f5-1f3afa07f707 Finland (FI)3b418f88-b5b2-41cb-90b1-08880e4a9a02 Netherlands (NL)0f8e4da1-f173-4bf3-8a59-d7a5bbfb3d26 Bulgaria (BG)5204d293-1333-44b4-af82-2c7a059f9969 France (FR)0273eb6b-4ce6-4a1d-b077-c1a42622d8bf Croatia (HR)a03c2764-1fc1-43c8-9c73-3bfb0a9fc9f0 Germany (DE)22e20f5a-efcd-469b-9a63-29a4e084cb5e Germany (DE)e4f093ef-f21f-4f26-94b4-60cd8653cc79 Estonia (EE)5f0f902f-aca1-48a8-b042-0a2b949f18d6 Denmark (DK)dc391e8e-1568-4358-a75f-8fda8d1f1149 Germany (DE)043808e6-c66b-438f-aa8a-3ee6a50596c3 Germany (DE)25e1d9bd-031d-490a-ab60-999af3543519 Hungary (HU)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z2BSEJBJ200A000000XX
