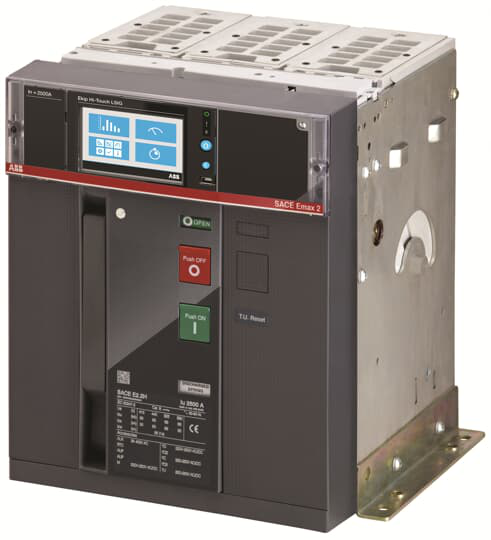

ABB 1SDA070969R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E2.2S 1250 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSIG R 1250 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2S 1250 Ekip Hi-Touch LSIG 3p F HR
ABB 1SDA070969R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0083
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 15000 cycleUe = 500 ... 690 V 15000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 83 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1250 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 85 kA(400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 66 kAfor 3 s 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA
- Rated Uninterrupted Current (Iu)
- 1250 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Hi-Touch LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- E2.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 41 kg
- Product Net Width
- 276 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 93951f71-79f6-4cd1-80e4-c7909f9baa54 Italy (IT)
- Simplified SCIP
- bffca4b8-cc43-4760-9490-599d85598d59 Poland (PL)e66feb15-45a7-402a-885b-567ad390a6e3 Poland (PL)16400ca4-5e80-4420-982b-8573796a6059 Hungary (HU)d01d409d-835b-4eba-81f3-1a206a2f1b24 Belgium (BE)59f22650-15c6-4cf3-81e8-936fb8c114dc Spain (ES)2392a3fb-3f44-46f4-9dbe-35b3f18fd0a3 Czech Republic (CZ)d856b782-40d9-4d5f-9eaf-6ac5d42fe19e Poland (PL)283339fe-92aa-4860-af51-cda42672e306 Norway (NO)6fd0a2c2-40a6-4c1b-8891-da5cc7f79bf9 Hungary (HU)f434cbad-8c1f-492e-9765-c8f8167927d4 Estonia (EE)86d5c231-42f5-446b-a34e-43304d107673 Denmark (DK)53abf30e-bf07-4085-8cce-5c8cd62100af Germany (DE)dbf528bf-9554-4f30-b26a-02c4a26f0b00 Germany (DE)272adc79-6785-401e-80b5-e2b2e3cbcbcd Germany (DE)0fc4f35f-d13c-4c03-8f09-abc9a3437745 Germany (DE)6ac32107-d851-47e7-9702-8bef3e0e530d Sweden (SE)b7da3638-55c2-402e-8420-ae7abe843e93 Belgium (BE)9396dbfd-071e-4f90-b7df-2f924996de4f Netherlands (NL)80792894-4f83-4c20-9dab-294c74097336 France (FR)0e3108de-20ee-4ddb-9c12-180961e99ce3 Greece (GR)c028809b-13c3-4445-9c69-71828cb7c52f Finland (FI)a1694668-4cc1-476e-99ef-3e2f5b40eebb Bulgaria (BG)5e88e40e-524e-48d0-9f09-e7cf486a62a1 Croatia (HR)c50f5f90-efff-420c-bb42-c569d4703136 France (FR)3d9c4630-bd46-4103-bfa8-16d8631b5e9f Portugal (PT)dcc2e542-6ea2-40ce-a663-fd493265c721 Sweden (SE)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z2SREHBK200A000000XX
