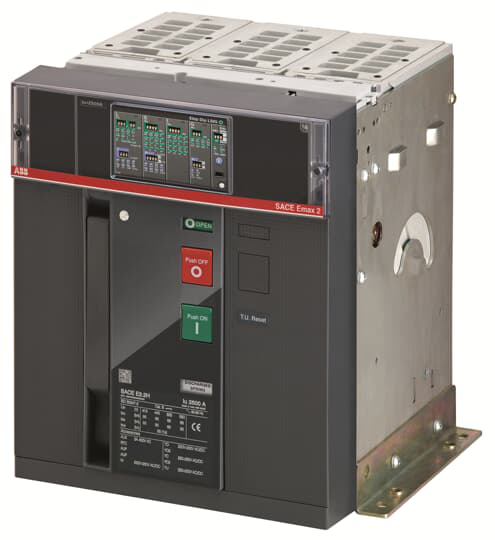

ABB 1SDA070943R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E2.2H 1000 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/DIP-LSIG R 1000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2H 1000 Ekip Dip LSIG 3p F HR
ABB 1SDA070943R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0083
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 15000 cycleUe = 500 ... 690 V 15000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 53 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1000 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(660 V AC) 85 kA(690 V AC) 85 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 85 kAfor 3 s 66 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(525 V AC) 85 kA(690 V AC) 85 kA
- Rated Uninterrupted Current (Iu)
- 1000 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Dip LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- H
- Standards
- IEC
- Sub-type
- E2.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 41 kg
- Product Net Width
- 276 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 3524ebd0-506e-4842-a980-5debc7b3c0d7 Italy (IT)
- Simplified SCIP
- 5c288ab6-fd2a-47c3-969e-be7d20e5a2f0 Spain (ES)5b0456d4-4d16-4b5c-9353-e3f07feb2fe7 Belgium (BE)3a601751-e3ea-4ec3-8911-c58671e8d0a3 Hungary (HU)e177d9fc-afb7-400f-b216-a8c6a960a2ed Germany (DE)7e5b07da-fe01-4014-a920-ac4d28208e74 Croatia (HR)94a74485-0f86-4abb-8327-839ba8e7fe7a Bulgaria (BG)3cea7eb8-ec05-4a2a-b9c2-1e9d0614e279 Germany (DE)a5f85d71-3aec-4ba1-819b-d3202a3cdf8c Estonia (EE)705be766-e203-4cec-88a3-94c33c87334d Germany (DE)cec22d4e-37e1-4e4c-828e-2cf065d01ec0 Germany (DE)969f9bf4-8dfe-4e08-afbf-58fb3df03a0a Denmark (DK)660053e0-176b-48ee-9137-44b24cc5b52e France (FR)2f6e5966-4136-4401-8150-60bceeed5ab6 Greece (GR)ca98a39c-17fe-4866-8839-0a0a91e1490f Finland (FI)12d9cf51-8ecc-4ab7-8d20-5505bbb56257 Netherlands (NL)82e6c02d-d6b2-42cd-a453-3228b82d582b Belgium (BE)082efb1d-3516-44a9-b885-3f692be1f338 Sweden (SE)a53c5ef4-0562-47fa-8516-bb3b586f36a4 Hungary (HU)ed87ce75-0144-47f2-bbed-677fdc310f79 Norway (NO)ed901245-02c5-4c60-a781-2e21236023a3 Poland (PL)2754cb36-aecf-4f86-b564-4aa5f75f78cb France (FR)0494ba2a-a17f-4f46-8495-04269c13d748 Poland (PL)590f0ef7-8d8c-4dc9-b3af-a16fb4392c74 Czech Republic (CZ)49503878-ff53-48c0-baad-f11891d0b73f Poland (PL)918f0d0e-e541-4d77-8830-71fe86d5d81e Portugal (PT)632f9036-a5cb-4562-bc51-2349a110ce0e Sweden (SE)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z2HQEGBC000A000000XX
