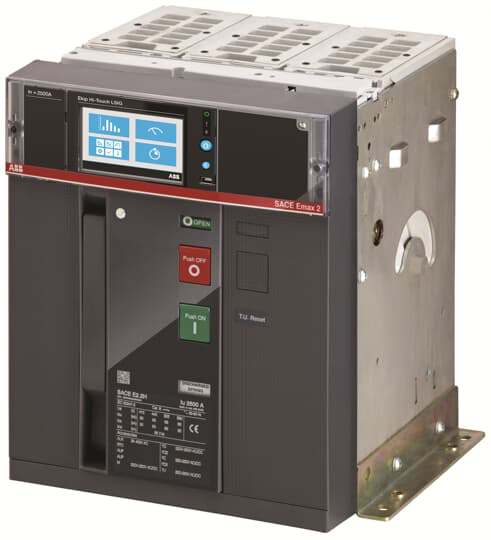

ABB 1SDA070918R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E2.2H 800 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSI R 800 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2H 800 Ekip Hi-Touch LSI 3p F HR
ABB 1SDA070918R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0083
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 15000 cycleUe = 500 ... 690 V 15000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 34 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 800 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(660 V AC) 85 kA(690 V AC) 85 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 85 kAfor 3 s 66 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(525 V AC) 85 kA(690 V AC) 85 kA
- Rated Uninterrupted Current (Iu)
- 800 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Hi-Touch LSI
- Release Type
- EL
- Short-Circuit Performance Level
- H
- Standards
- IEC
- Sub-type
- E2.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 41 kg
- Product Net Width
- 276 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 1014a0b7-3d01-430e-b024-3005f92f1d8a Italy (IT)
- Simplified SCIP
- 25bac095-b6c3-4429-94a5-2447b15805a2 Spain (ES)fe23c86f-5cd8-42e6-9a02-7bf387b49881 Belgium (BE)86db4dbf-dd75-4af2-80e1-257781b6a63a Hungary (HU)4fce85c7-e15f-418e-8ce9-c06df22eb5b2 Croatia (HR)d7fc2784-3200-4d72-879d-b0f17b0dc811 Norway (NO)5ca65eb9-2f40-4297-b023-36a1e8565e26 Poland (PL)823660bb-e7b7-4a15-9ea5-86a446afd7bc Hungary (HU)50c048fa-93cc-4a79-b03b-ff197cf0de57 Czech Republic (CZ)6daa208c-3345-40ed-8f46-f6c82e3899ae Denmark (DK)7213f52a-e703-4040-b194-908536d9da0c Estonia (EE)33226188-82f3-46a0-b637-a832408a6e06 Germany (DE)6a92541d-4eaf-4030-aa9e-04bcb5bb131e Germany (DE)23a37f72-d2f1-475e-9c25-4a7d76b95a2d Germany (DE)3f204d93-0045-413e-bbfc-532d6f5e6aef Germany (DE)61181626-1585-4ef8-8239-89afa4883d62 Sweden (SE)0cf2b609-b33a-413a-bf1b-7ba0346a0de3 Bulgaria (BG)d58d97e0-c776-40aa-b40c-15eaaf3d57e5 Belgium (BE)e0ded06d-fa8b-4ca2-abe6-d48d89564cfc France (FR)be7b3654-ab2a-45f6-bcf1-f6d66a99750e Greece (GR)994dd9b9-cea9-4a2e-9709-b9c90d0e9c4f Finland (FI)7eb529be-52a6-42b4-8374-28b655a9ee44 Netherlands (NL)c702cc5e-7aab-4d5c-9105-87962e5b890b France (FR)4c772fd1-4873-46d5-9ba8-3c1a8599f875 Poland (PL)bffb6204-ff7e-4964-b30b-95a1dd2a51c9 Poland (PL)054f8597-29bf-476c-935a-c2127fe0e5a8 Sweden (SE)e3d537b5-230c-4e49-bbd7-7c902d414ea6 Portugal (PT)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z2HPEFBJ200A000000XX
