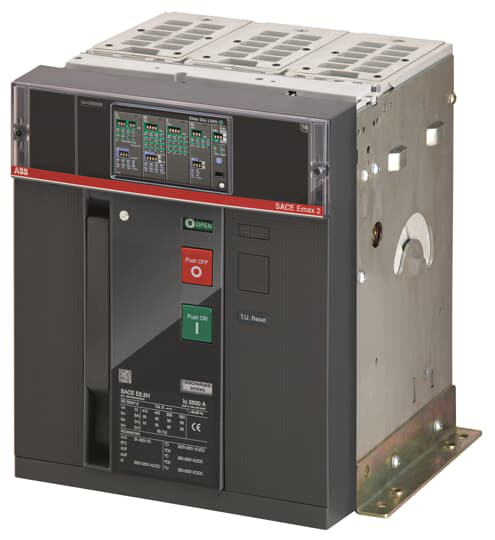

ABB 1SDA070912R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E2.2H 800 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/DIP-LSI R 800 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2H 800 Ekip Dip LSI 3p F HR
ABB 1SDA070912R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0083
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 15000 cycleUe = 500 ... 690 V 15000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 34 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 800 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(660 V AC) 85 kA(690 V AC) 85 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 85 kAfor 3 s 66 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(525 V AC) 85 kA(690 V AC) 85 kA
- Rated Uninterrupted Current (Iu)
- 800 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M12
- Release
- Ekip Dip LSI
- Release Type
- EL
- Short-Circuit Performance Level
- H
- Standards
- IEC
- Sub-type
- E2.2
- Terminal Connection Type
- Rear flat Horizontal
- Terminal Type
- Bolt
- Tightening Torque
- 70 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 41 kg
- Product Net Width
- 276 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 27884619-f70d-4f9b-895b-78d4a8656e88 Italy (IT)
- Simplified SCIP
- f4451f04-ca30-497a-809d-0b47dc81fead Hungary (HU)afa2f21e-d149-4a2b-9f9e-2d0ae280ed24 France (FR)31bc8fd1-33b5-446f-a7d8-f21a97ed1cb2 Spain (ES)732d9c57-5d54-4d39-a750-51ffdd5195e0 Belgium (BE)f8f0a3c3-453d-4eef-9d86-bc543b3a6fc9 Bulgaria (BG)8c727513-a9ae-4e25-bfdf-4b249146d45d Croatia (HR)5d4296dd-349e-4950-9cfd-95c216928b3f Germany (DE)6924751d-72ca-4f91-8aeb-10ba67c9240a Estonia (EE)e9706ff3-2b17-472f-af0b-c0d25e2e0b73 Germany (DE)38856696-55c3-46af-8ddc-5c8a7ab0c956 Greece (GR)51a5b9a9-b60f-4411-8d2b-95144d0ebe71 Netherlands (NL)c372523e-1be8-4b6b-aad0-8ef7b047da87 France (FR)32ec3b6c-c237-446f-a298-9e0827da652a Finland (FI)a53814ab-e519-4207-ae73-b57245a8af03 Sweden (SE)cce79621-8991-42f4-a764-81008fbc7f76 Belgium (BE)62abdda5-501c-4622-a2b4-4deaa8167ba9 Denmark (DK)8a2f5c9a-d936-43ab-a1d5-80f6cbdafc8c Germany (DE)7ea56449-5be7-4443-94a2-578ef05ae5c8 Germany (DE)af1bf5a4-6dab-478a-9639-248da85bb1b6 Norway (NO)14ed5481-826f-4a47-b5a9-f0c7c4658e81 Poland (PL)38dd4feb-759d-4294-b384-59f442418a5a Poland (PL)efceb5f4-0a47-470c-8949-c89e77ac6d69 Hungary (HU)4bc8c650-6e4f-416f-994b-f14a5e3b163f Czech Republic (CZ)d1a103aa-821c-4826-b19d-79fb7fae9efe Poland (PL)e416e307-5d04-43b3-a670-98f493cab97b Portugal (PT)8a45a2bd-24fe-4c92-971a-2f32baace96c Sweden (SE)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z2HPEFBB000A000000XX
