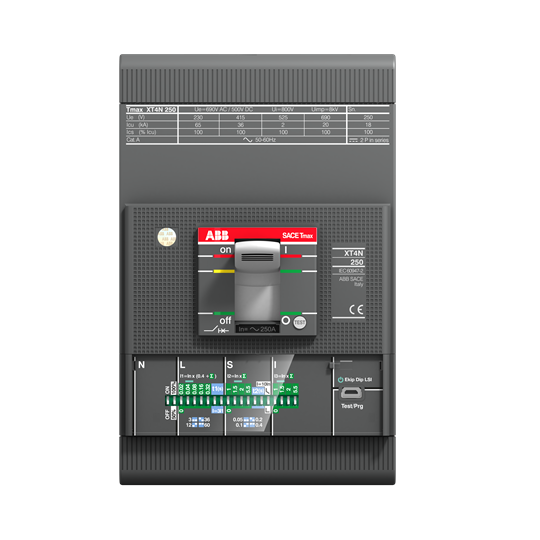

C.BREAKER TMAX XT4H 160 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP-LSI R 160 AXT4H 160 Ekip LSI In=160A 3p F F
ABB 1SDA068524R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH002230A1003
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 85..200 mm²
- Current Type
- AC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 3
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 8.90 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 160 A
- Rated Frequency (f)
- 50/60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V AC
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(240 V AC) 100 kA(380 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(525 V AC) 45 kA(690 V AC) 15 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 100 kA(230 V AC) 100 kA(240 V AC) 100 kA(380 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(525 V AC) 45 kA(690 V AC) 15 kA
- Rated Uninterrupted Current (Iu)
- 160 A
- Rated Voltage (Ur)
- 690 V AC
- Recommended Screw Driver
- Main Circuit M8
- Release
- Ekip LSI
- Release Type
- EL
- Short-Circuit Performance Level
- H
- Standards
- IEC
- Sub-type
- XT4
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 8 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 58.5 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2352
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 82.5 mm
- Product Net Height
- 160 mm
- Product Net Weight
- 2.5 kg
- Product Net Width
- 105 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1898
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 6c060105-007b-426b-868a-47abbf32990d Italy (IT)
- Simplified SCIP
- 1f6df7ae-81cb-4203-b88f-c9e0ce3c80fc Greece (GR)594b243a-41c3-4148-9c38-7ee740f97f6f Portugal (PT)30120d4f-0247-4a26-a4cf-9c9837eac203 Bulgaria (BG)06a41a5d-c19b-4c0b-b620-825d933ef324 Sweden (SE)0f85d3f4-99fa-4bba-9173-4dd509620dc7 Poland (PL)d6eb10a0-7d0a-4ffc-80ba-b9cb8e8d7e19 Germany (DE)9b4f6201-11ec-4d6b-a8e8-6017d271f41d Croatia (HR)7f827d8b-850f-4f07-b971-2ff2128558af Czech Republic (CZ)90cca48d-5582-495e-bc66-eb9bee00a710 Poland (PL)5ed68dae-4e75-41c2-98cd-a25bb747a865 Netherlands (NL)9ce97b17-9c37-44df-b22d-ca1e3530b54e Netherlands (NL)5e3b3e07-126a-430c-94f9-575edf250ba2 Estonia (EE)3796915d-9b97-4526-bd59-8b0d8e8e28a7 Netherlands (NL)09ddc47f-6fcb-4c99-baec-5e4656e1ff71 Germany (DE)9b730da1-a6cc-47bd-92e1-2d3d96735de1 Denmark (DK)7bbd843c-b9c8-4557-b3e5-89cdc8a02d8f France (FR)d4fd2ca2-f1f7-4491-8514-bf656dc2b12c Sweden (SE)0344c3c8-cead-4a10-8c3b-032f3917c1e8 Germany (DE)75ac2893-b89d-4777-9d68-0479b91a9544 Germany (DE)e610ecff-5d14-4126-b6e9-442e3668e3eb France (FR)b539c7a6-c4c5-4d23-85ef-eaca2235c514 Netherlands (NL)ab48002c-40f9-4e35-8dea-d7d55def9e95 Spain (ES)37ccc43c-1b79-4561-ac0f-a62399b3d2f7 Netherlands (NL)758a0320-b742-4d76-a154-6a07b397c740 Poland (PL)b32ce7cd-3d9d-42cc-8d40-a328c78f62ce Norway (NO)7c80d365-f207-4088-b463-d1110f842217 Finland (FI)
