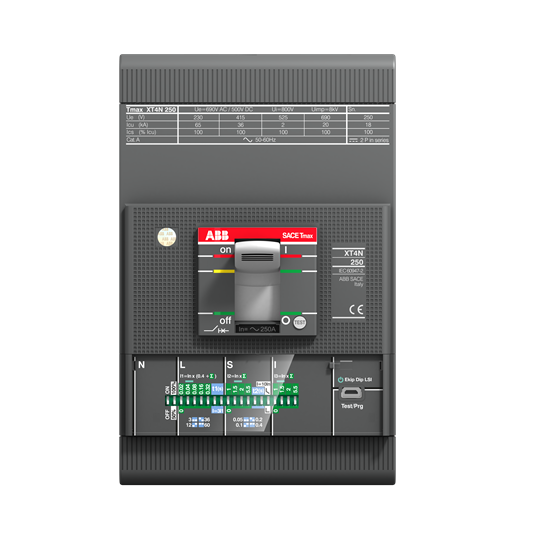

ABB 1SDA068475R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX XT4S 250 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP-LS/I R 250 AXT4S 250 Ekip LS/I In=250A 3p F F
ABB 1SDA068475R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH002230A1003
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 85..200 mm²
- Current Type
- AC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 3
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 16.4 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 250 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(240 V AC) 85 kA(380 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 36 kA(525 V AC) 25 kA(690 V AC) 12 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 85 kA(230 V AC) 85 kA(240 V AC) 85 kA(380 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 36 kA(525 V AC) 25 kA(690 V AC) 12 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M8
- Release
- Ekip LS/I
- Release Type
- EL
- RoHS Date
- null
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- XT4
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 8 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 58.5 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2352
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 82.5 mm
- Product Net Height
- 160 mm
- Product Net Weight
- 2.314 kg
- Product Net Width
- 105 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1898
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- a0b4793c-54b1-4ffb-8743-71005e613fa4 Italy (IT)
- Simplified SCIP
- a07e90e9-40ca-4259-be5d-18eb5b419ef0 Germany (DE)1b023db3-3601-469a-8ca2-7ed83a765ed1 Croatia (HR)1cd49d4c-7ad1-4636-b617-ff06482b0b19 Czech Republic (CZ)42bc31df-f5ef-477d-8461-0981ef96605d Netherlands (NL)0f8e1c65-9bfd-45ad-b7e9-796835cf5d0c Estonia (EE)4cbb8db6-d6e1-4369-8740-1bb8ed92651b Greece (GR)cd4a8ef0-c7a2-4505-95bd-df95e41cf576 Portugal (PT)c2acc7f0-049c-419e-baae-2ade41c763e4 Bulgaria (BG)709f389d-1062-4a3d-907d-29755f502419 Sweden (SE)ca5a1d7d-d477-4b0f-8bb4-d3aa9158b46a Poland (PL)28a764f6-113e-44e3-82cb-4b30e2e75ac3 Poland (PL)3022e371-6ed0-49bc-888c-ddedb659d63a Netherlands (NL)4570c748-512d-4c25-8947-7f6bafa8e801 France (FR)3397e787-8df2-4466-9ca4-706ab0c8d996 Sweden (SE)be5030b1-2a27-4336-9408-1f8b5d38b858 Germany (DE)ab60e0dd-810e-4d85-a004-1c71e135ddda Germany (DE)b8c4c683-f22e-4b69-b211-1e60c36789da France (FR)bfb82c68-1e70-45b9-ac0e-730b2eebbef7 Netherlands (NL)bc9000b4-80af-4d2d-b4a3-0319354b56a9 Spain (ES)c4f2001b-a8bf-4771-a499-0af66b3d4db6 Netherlands (NL)9bc0d3a7-511a-490a-b6d6-6c62bf4be76d Poland (PL)439d6ad0-a509-4f3c-a3d1-75ec682c66e9 Norway (NO)8baf0533-48db-4141-98a7-adc8f9a2d2fd Finland (FI)14c33def-6b73-4a32-9884-9304171755d1 Netherlands (NL)e99b5c83-eea8-4ad7-a49e-7e46cbed9f54 Germany (DE)7bcf544c-945e-4e25-b425-36b3ed2ab407 Denmark (DK)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3641048
- E-Number (Sweden)
- 3182045
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- XT4SE3250EFF000XXX
