ABB 1SDA068221R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

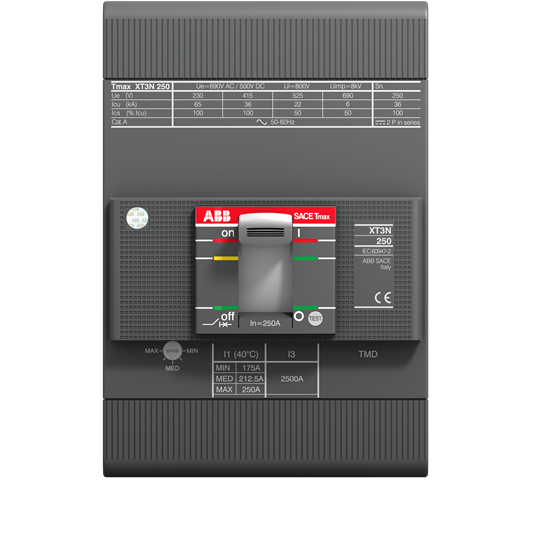

C.BREAKER TMAX XT3S 250 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 250-2500 AXT3S 250 TMD 250-2500 3p F F
ABB 1SDA068221R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001295R0409
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 85..192 mm²
- Current Type
- AC/DC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 3
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 17.8 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 250 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Instantaneous Short-Circuit Current Setting (Ii)
- 2500 A
- Rated Insulation Voltage (Ui)
- 800 V
- Rated Operational Voltage
- 690 V AC500 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 42.5 kA(230 V AC) 42.5 kA(240 V AC) 42.5 kA(380 V AC) 27 kA(415 V AC) 27 kA(440 V AC) 20 kA(500 V AC) 15 kA(525 V AC) 10 kA(690 V AC) 3 kA(250 V DC) 2 Poles in Series 27 kA(500 V DC) 3 Poles in Series 37.5 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 85 kA(230 V AC) 85 kA(240 V AC) 85 kA(380 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 40 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 6 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 50 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M8
- Release
- TMD
- Release Type
- TM
- RoHS Date
- null
- Setting Range
- 175...250 A
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- XT3
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 8 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 60.5 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2350
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 70 mm
- Product Net Height
- 150 mm
- Product Net Weight
- 1.7 kg
- Product Net Width
- 105 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A2294
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- fe1eb3d5-8c63-44e3-bb9c-10a9d49206e0 Italy (IT)
- Simplified SCIP
- 395af62d-3166-4330-85a8-57f13e3c4cd6 Czech Republic (CZ)a87e088c-bfca-4bca-bd82-2e3996b21c8d Portugal (PT)bf0b7bc2-795b-4a18-97b5-d0d8f5a7acdc Bulgaria (BG)3e4f51cf-72a5-492e-be25-a7d2dd6ff282 Sweden (SE)69f60869-d4b2-4daa-9fd5-36d197f51f10 Poland (PL)0d7c7b1b-a443-4df0-a06f-7af825c37f11 Poland (PL)a6b4a186-2c57-4b75-9f4d-9eaccfd9b7b0 Netherlands (NL)6fb29b1b-0ca7-4e33-a44c-024aabc4956d Netherlands (NL)b78f8949-00db-4428-b91c-0646514f9dcc Estonia (EE)675b8a00-d9a4-4f9a-bf6a-dc94fba0328e Greece (GR)fa62de05-56c7-44bc-a54e-9f790f893580 France (FR)f5455b37-8cfa-43a9-8b42-d5f752252d31 Sweden (SE)e06e5780-042d-4a05-8556-540e6750fb61 Germany (DE)40296efb-f1d5-4dd8-b88a-4f2a333352a8 Germany (DE)43c357e0-c904-4461-a29a-3201d177fc76 France (FR)7af40e2c-a3e3-41bb-a8d9-1bec85a0444f Netherlands (NL)a9044156-da7f-49a2-9254-b458c64e50af Spain (ES)bf63fa76-4f5c-4a04-aeda-6f6a7da8d9d9 Netherlands (NL)f3d1d321-20ae-4580-92e0-be2d07fb2753 Poland (PL)0cdbbb9a-2229-4d94-b659-4674ff269e38 Norway (NO)d0cc30b8-ea6d-49d7-9945-8ca15b360ca5 Finland (FI)553e89f6-94d8-4d6e-a8bd-a6515c266c0f Netherlands (NL)01a99f56-8375-449a-bef4-a2a245564d95 Germany (DE)f8a5a84b-dc9b-4dab-ac2b-3d255af93191 Denmark (DK)ca7d45d8-fe72-41ce-af50-92639318b638 Germany (DE)9f1b92ef-6563-4865-afb4-37f962d0b9ca Croatia (HR)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3641020
- E-Number (Sweden)
- 3182436
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- XT3SE3250AFF000XXX
