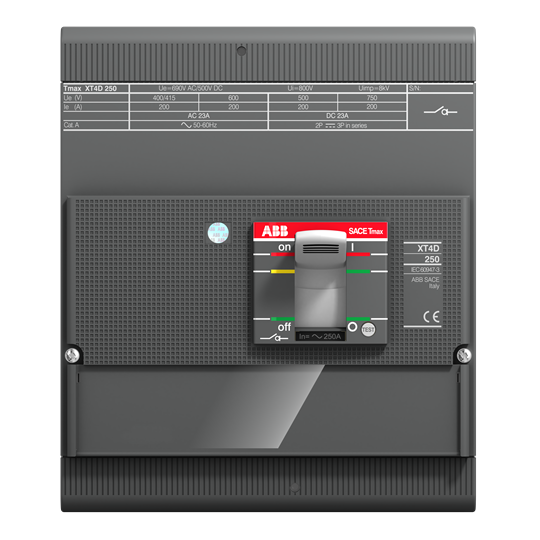

ABB 1SDA068213R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SWITCH-DISCONNECTOR TMAX XT4D 250 FIXED FOUR-POLE WITH FRONT TERMINALSXT4D 250 4p F F
ABB 1SDA068213R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001295R0677
- Connecting Capacity Main Circuit
- Busbar 85..200 mm²
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 4
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 16.4 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Switch Disconnector
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 800 V
- Rated Operational Voltage
- 690 V AC750 V DC
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 3.6 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M8
- Short-Circuit Performance Level
- D
- Standards
- IEC
- Sub-type
- XT4
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 8 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 58.5 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2351
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27371403
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 82.5 mm
- Product Net Height
- 160 mm
- Product Net Weight
- 2.35 kg
- Product Net Width
- 140 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1892
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- f8edeb2d-ea0d-4278-a91d-460c0811753c Italy (IT)
- Simplified SCIP
- c8ad956d-82a8-41e5-a55a-66d4751d12e0 Sweden (SE)9abe2f1f-4ec4-4e40-bffe-5d724a630689 Poland (PL)9db63ea0-0efc-44ac-9925-ac6675088923 France (FR)48902678-b226-4a21-a5f4-8f8b8a699f12 Sweden (SE)30129b33-2efe-43f9-b82e-9f690e0d5c3e Germany (DE)3d9c8853-75c2-44bd-b99e-6c512ddbc7a0 Germany (DE)e4dc520a-dc92-4ca2-8e00-cc97249fe3f6 France (FR)99dd3628-6c68-440d-89c0-17b7bb7b3aab Netherlands (NL)895974a2-e067-4455-a677-7750c486c580 Spain (ES)d98af576-f48f-45db-a4c9-8d18c3256907 Netherlands (NL)70313bc8-3301-4fc7-b617-c7c4d8b454c7 Poland (PL)27482aff-1ca6-4e56-ab7f-ceb60d46e241 Norway (NO)e652a2bc-c945-4592-a0b3-e12eb4c00f34 Finland (FI)33012c14-e6ab-4fa1-b4f0-ac6843ec4515 Netherlands (NL)c28e53b6-b0b7-4376-ac13-fd85e42201a8 Germany (DE)f536679e-cfff-4cee-97ac-485d669a6460 Denmark (DK)0b7144f3-6fcc-4899-9472-ad28d80b8bd8 Germany (DE)b2c1e8e2-03c5-4f1e-947e-fe69c56a8650 Croatia (HR)37296b04-b4d5-4a64-8f25-060756d05b0a Czech Republic (CZ)707bc0dd-17aa-412f-91d0-04c37a3cc52a Poland (PL)911f37b5-e0b9-4f21-abf2-21f1be783c0d Netherlands (NL)33461ebf-2168-4341-8f0f-8d2f51f46906 Netherlands (NL)fcdd22f6-3469-4a01-87cf-275d4fba36f5 Estonia (EE)661c7678-40ff-4fba-b7e5-67fea5bb3761 Greece (GR)83c0d2d9-a806-4513-98c3-ed7b2b8a6bd3 Portugal (PT)a7056dc4-e193-49b2-8fa6-9cc96beb4192 Bulgaria (BG)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- XT4DE4250DFF000XXX
