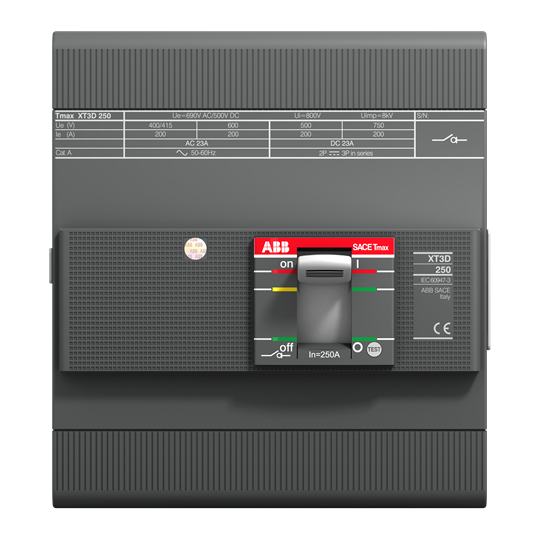

ABB 1SDA068211R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SWITCH-DISCONNECTOR TMAX XT3D 250 FIXED FOUR-POLE WITH FRONT TERMINALSXT3D 250 4p F F
ABB 1SDA068211R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- CAD Dimensional Drawing
- 1SDH001295R0483
- Connecting Capacity Main Circuit
- Busbar 85..192 mm²
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 4
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 17.8 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Switch Disconnector
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 800 V
- Rated Operational Voltage
- 690 V AC500 V DC
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 3 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Recommended Screw Driver
- Main Circuit M8
- RoHS Date
- null
- Short-Circuit Performance Level
- D
- Standards
- IEC
- Sub-type
- XT3
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 8 N·m
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27371403
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 70 mm
- Product Net Height
- 150 mm
- Product Net Weight
- 2.1 kg
- Product Net Width
- 140 mm
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- e9c6d324-757f-48e7-bcdb-71ddc679e1a6 Italy (IT)
- Simplified SCIP
- 09e59157-9a80-4d0b-a96b-ca3fcf041587 Spain (ES)ae097e24-1f0e-4d45-875a-ab8a8f7f4c7c Netherlands (NL)579dfffc-2df8-4e0a-bd67-8cd347059ea7 France (FR)9dca8b95-bf16-48da-805c-3ac6bd2c93e3 Poland (PL)97fc13ce-c76f-404e-849d-ba3cc9ef3299 Norway (NO)ce1fdca3-1381-4b22-92f5-aebf21d01755 Finland (FI)eb24a2c0-5b14-4d6c-b82c-2ba2f39194b4 Netherlands (NL)f2a7b74c-7168-4a73-bb69-9fe6fd8562b0 Germany (DE)eef500b1-2d8b-40d1-970d-a8e47cf60115 Denmark (DK)3206c531-2472-43fb-b192-c2fa073ac982 Germany (DE)915cae97-4683-4306-bb7e-e7aa51db743b Croatia (HR)17bb9463-f7c2-4e49-aea3-cb46f5422ecf Czech Republic (CZ)b6977f81-6257-4890-8e45-68d0b0a1ab66 Poland (PL)b06d40a7-227b-46be-9e3f-6444c79fabc0 Netherlands (NL)dd6fd401-4c8e-40b7-bd46-937f15388300 Netherlands (NL)1ded47ec-519d-4059-afbf-64e7d15ce90d Estonia (EE)1e4f5ffa-42fa-4325-8eda-0c1264d5c8d6 Greece (GR)0f97ef4e-68b6-42f7-a751-a860a51d8168 Portugal (PT)9d8722c8-4c00-40d6-8c45-a33aa2ff4776 Bulgaria (BG)242feccf-8a59-40a3-8806-8830e49caad2 Sweden (SE)59b41818-a354-451d-9918-d76235832f5e Poland (PL)de42e012-8005-4f57-a3a0-7c563d8e8c51 Sweden (SE)1f19022b-6705-4212-bbbd-3d8d8929e804 Germany (DE)f2ff25db-12d2-42f8-bcf9-f0629129e1f9 Germany (DE)a04f2fd5-c875-4882-9c47-4fa8ab334949 France (FR)8ad73bd8-c066-42ac-8a88-f3303a455335 Netherlands (NL)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- XT3DE4250DFF000XXX
