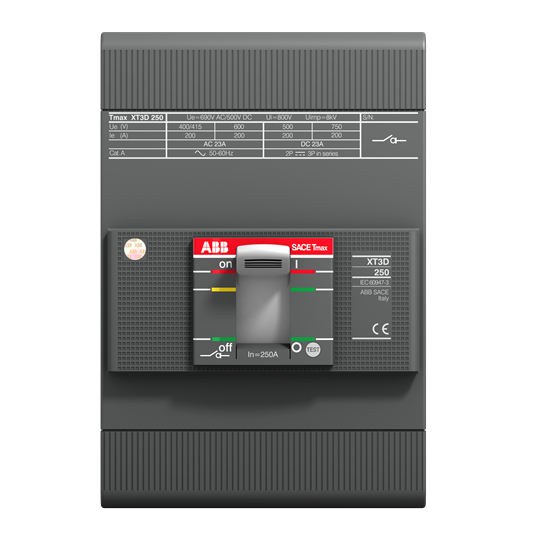

ABB 1SDA068210R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SWITCH-DISCONNECTOR TMAX XT3D 250 FIXED THREE-POLE WITH FRONT TERMINALSXT3D 250 3p F F
ABB 1SDA068210R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- CAD Dimensional Drawing
- 1SDH001295R0409
- Connecting Capacity Main Circuit
- Busbar 85..192 mm²
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 3
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 17.8 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Lasttrennschalter
- Product Type
- Switch Disconnector
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 800 V
- Rated Operational Voltage
- 690 V AC500 V DC
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 3 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Recommended Screw Driver
- Main Circuit M8
- RoHS Date
- null
- Short-Circuit Performance Level
- D
- Standards
- IEC
- Sub-type
- XT3
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 8 N·m
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27371403
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 70 mm
- Product Net Height
- 150 mm
- Product Net Weight
- 1.566 kg
- Product Net Width
- 105 mm
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- ec4e48ec-00ba-4292-a619-b515dc7db68e Italy (IT)
- Simplified SCIP
- d88241e5-1ed2-4c4b-81b8-8cf282685b79 France (FR)fe567b80-8b13-417f-87e3-055d07f3ff79 Sweden (SE)7da146d4-aeda-45b5-87a9-6a1edf93b776 Germany (DE)a136d772-6d86-418c-b05e-7407d7467a62 Germany (DE)dd7ff8d6-7a82-4087-85e3-04c1d2bfdb98 France (FR)651d7b94-5fb5-4994-b2e4-059e9225c2f1 Netherlands (NL)a0947815-fbae-48f5-8214-5d2c4556a13d Spain (ES)55327bf6-7c15-4472-a2e8-1e815f34b3d8 Netherlands (NL)83b31be7-99b8-4461-a756-00f817a3fc92 Poland (PL)851089e1-19a4-4b9e-97a6-4c042a68529e Norway (NO)32b9cc7f-e601-4ceb-bc63-38ccee0aa9ec Finland (FI)84f2b593-faed-456f-baef-b0db301fab12 Netherlands (NL)08098874-581e-4be6-aad1-cc21f09bf3f4 Germany (DE)918c74ed-9289-4cc4-ad0f-0aec4c32fed2 Denmark (DK)2829fcf2-97be-4400-b212-82d5f42cf768 Germany (DE)ba98d66c-4cf2-4f27-8d3d-f5ada16dcb72 Croatia (HR)88e559e2-2d39-402e-9e1a-d4d192161031 Czech Republic (CZ)d02566e6-8c4c-40d0-b6a0-61af01b43687 Poland (PL)777d07e1-742a-4174-be07-0ae1a710db3b Netherlands (NL)d2a11460-efe4-48e9-a6ed-6495e0e08494 Netherlands (NL)70b1a1b6-c1ae-4ee6-b8aa-0848c2db4b21 Estonia (EE)22dcc9b3-bf47-4727-8157-24200ac03d31 Greece (GR)677b3751-20b1-43f3-bf25-63e10472f139 Portugal (PT)ae82c7bd-7f6a-4fef-a0de-7a45060535e1 Bulgaria (BG)d97e1c44-fd80-44e8-97f7-c41ded3fc253 Sweden (SE)bffd33a1-a83b-47e9-9660-815ed3fe6465 Poland (PL)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- XT3DE3250DFF000XXX
