ABB 1SDA068136R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

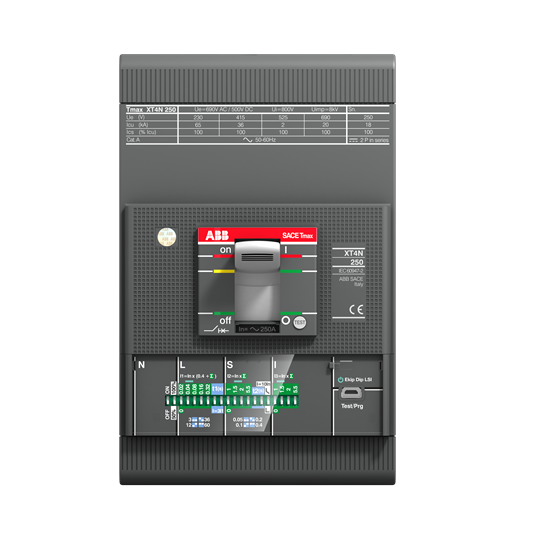

C.BREAKER TMAX XT4N 250 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP-LSI R 250 AXT4N 250 Ekip LSI In=250A 3p F F
ABB 1SDA068136R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH002230A1003
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 85..200 mm²
- Current Type
- AC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 3
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 16.40 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 250 A
- Rated Frequency (f)
- 50/60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V AC
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Rated Voltage (Ur)
- 690 V AC
- Recommended Screw Driver
- Main Circuit M8
- Release
- Ekip LSI
- Release Type
- EL
- RoHS Date
- null
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- XT4
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 8 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 58.5 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2352
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- IDEA Granular Category Code (IGCC)
- 4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 82.5 mm
- Product Net Height
- 160 mm
- Product Net Weight
- 2.323 kg
- Product Net Width
- 105 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1898
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- b2291b72-aef3-4968-a1ce-94bb806ce883 Italy (IT)
- Simplified SCIP
- 044f936e-da76-481a-8519-ed7b47efe3ef France (FR)7ce4f487-77b6-45cd-b303-2688e44e6dc2 Sweden (SE)1961753b-e78a-4561-95dc-3540601a750e Germany (DE)1a515add-0f1d-4615-9fe3-3f520c3ee9ba Germany (DE)3f5ef36a-e368-457f-bb0f-65e90563e08f France (FR)8ecff045-f20b-4953-9ce5-9f3fdd04f98e Netherlands (NL)04d800e7-6d48-41a7-a458-d9a5828514ee Spain (ES)c1c5ef7d-36ef-4b9e-a68e-c95dc3452bea Netherlands (NL)055609c0-30d5-4763-9264-a808079ac679 Poland (PL)0ac1115c-3d66-4114-a700-881272f0522d Norway (NO)dbd6fb7f-f984-44c9-b0bb-f81c9faf9cef Finland (FI)b729549e-b06e-4350-a238-c36d7f4647e7 Netherlands (NL)d620dcbb-3d83-46c2-8580-f002b6f6a9d8 Germany (DE)d7a101b9-4e4d-4274-894d-227e0301f247 Denmark (DK)051a7e63-1dc6-4324-beb3-00546ac8056d Germany (DE)00a30eb2-15bd-4779-9750-90e0e25b677f Croatia (HR)57b44da2-4e85-4f18-a6f1-5040ca106c56 Czech Republic (CZ)b5891451-9746-4fa7-b10a-83fae960bfac Poland (PL)1b9069a2-3ce0-435d-8f5d-71718693fb26 Netherlands (NL)914a8870-c791-4181-b757-6e8edb05f82d Netherlands (NL)e74edcd7-9993-4bea-baa1-3793d9ad165b Estonia (EE)67b3f77b-0afb-4953-8ce0-b6ed11abe8a4 Greece (GR)43b29558-97e5-4b95-9a13-1c6e24e86460 Portugal (PT)94758f44-a808-4fd8-9d13-8fec8f8bfe5c Bulgaria (BG)9fd8eb71-2981-4365-b175-8c1c8ac1f415 Sweden (SE)f0f76699-090d-4612-9ef7-f24d270117d1 Poland (PL)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3641037
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- XT4NE3250FFF000XXX
