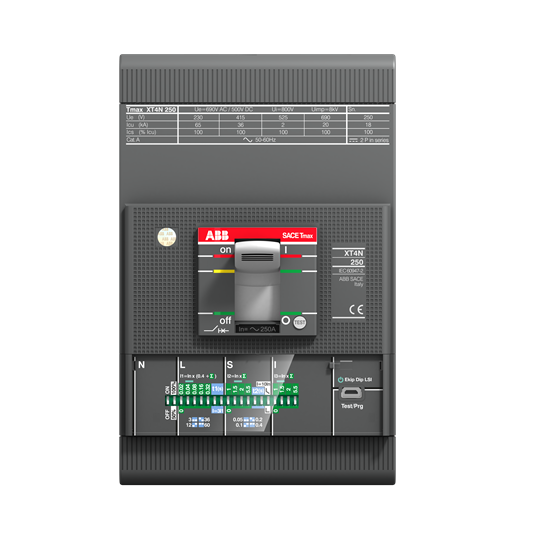

ABB 1SDA068126R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX XT4N 250 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP-LS/I R 250 AXT4N 250 Ekip LS/I In=250A 3p F F
ABB 1SDA068126R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH002230A1003
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 85..200 mm²
- Current Type
- AC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 3
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 16.4 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 250 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M8
- Release
- Ekip LS/I
- Release Type
- EL
- RoHS Date
- null
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- XT4
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 8 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 58.5 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2352
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 82.5 mm
- Product Net Height
- 160 mm
- Product Net Weight
- 2.312 kg
- Product Net Width
- 105 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1898
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 1dd7727d-27ac-42c4-a94d-75ca6cbb30d0 Italy (IT)
- Simplified SCIP
- 9200176c-46dc-483e-b753-48f4a12f9b46 Netherlands (NL)20abc35f-3e0e-438f-b19e-b129837db3f7 Estonia (EE)09a4c37e-dd07-4ada-ae03-5526ee91f745 Greece (GR)636a5cf7-6567-494d-9615-8f0ca9cfd339 Portugal (PT)2a8a854e-80f3-4c6d-9b74-edc0002e0b43 Bulgaria (BG)62a6510f-aa0a-47ad-90bc-43ea02213247 Sweden (SE)71256522-48e3-4f83-bf29-ec69092af45a Poland (PL)e6850370-8a20-44dc-8116-8ec8949a32af Germany (DE)315c8a3b-870a-4c23-b549-36cf82052322 Denmark (DK)b6b8fa4c-fbf3-4b01-8de0-aa23992318ae Germany (DE)162d16e2-8f71-4c34-8a7f-23d6c3b27841 Croatia (HR)12fe68a7-cf34-4e41-aa3b-29ca76c07dd5 Czech Republic (CZ)92650768-ebe7-40de-9737-373f3fd64cf3 Poland (PL)d1caeb7e-b751-4be9-8a89-8a133eadcfdb Netherlands (NL)98d6d3e7-0583-41ce-ba15-1cb47d852fa8 France (FR)63efd85a-04c1-4f3a-937e-caa3f01ee671 Sweden (SE)08462d36-e651-4155-9a05-5aade01a855a Germany (DE)e934b426-3eb4-4f7a-95e1-735388cd8268 Germany (DE)bbf84e3e-7bd3-4699-a859-b3c51fde7316 France (FR)cee32117-862f-4427-a9eb-5811cfdafc62 Netherlands (NL)b2317c81-c8f3-48f0-95e2-c8e9926a228b Spain (ES)ae59186a-1078-40fc-b246-cc9e79a7b343 Netherlands (NL)ec1c3816-e8e0-443b-9cad-a4a925cadb96 Poland (PL)bad0e3c6-ef27-47be-aac6-2207cadc0140 Norway (NO)54b940eb-7dba-40ce-9298-2692251e14de Finland (FI)cd297300-7723-4a35-a0d1-cd5e2b49e7d6 Netherlands (NL)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3638175
- E-Number (Sweden)
- 3182043
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- XT4NE3250EFF000XXX
