ABB 1SDA068092R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

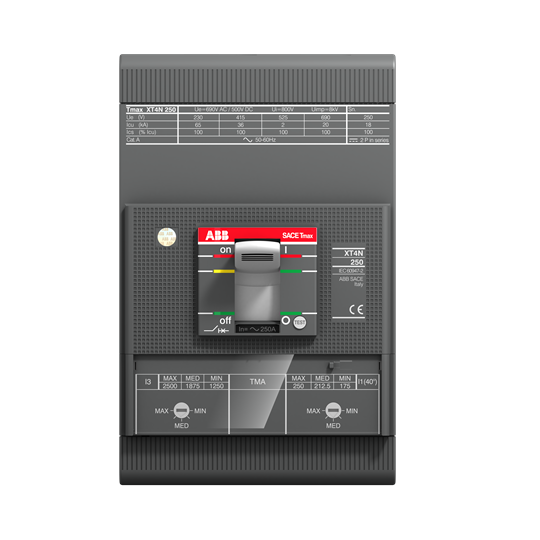

C.BREAKER TMAX XT4N 250 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 250 I3=1250...2500 AXT4N 250 TMA 250-2500 3p F F
ABB 1SDA068092R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH002230A1003
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 85..200 mm²
- Current Type
- AC/DC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 3
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 16.44 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 250 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Instantaneous Short-Circuit Current Setting (Ii)
- 1250…2500 A
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC750 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 36 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 36 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M8
- Release
- TMA
- Release Type
- TM
- RoHS Date
- null
- Setting Range
- 175...250 A
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- XT4
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 8 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 58.5 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2351
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 82.5 mm
- Product Net Height
- 160 mm
- Product Net Weight
- 2.252 kg
- Product Net Width
- 105 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1892
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 38e6bbd3-f6a2-4bae-953c-df2cb6f51486 Italy (IT)
- Simplified SCIP
- 7d9e2a35-12f2-4631-9056-4f8d563fb73b Netherlands (NL)869abbee-8298-405e-99b7-f8136540a90e Germany (DE)ada23c35-a386-495e-9c5e-5518b5b5439c Sweden (SE)a8f1f742-49e1-4636-a082-f8d88b2828f4 Denmark (DK)60bdc153-558b-4254-bcb3-df5a272720f3 Germany (DE)558543de-ab60-40fc-a179-3afa41ca58a9 Poland (PL)0809ba82-3d29-43c1-be69-7f48153a1e5f Norway (NO)f1024a44-a324-4f63-a15b-db263d19fe6a Finland (FI)e2982b7c-b232-4fe6-abba-f159359e8ba4 Netherlands (NL)166b506a-0465-464b-a40f-e2e407667ff8 Croatia (HR)be83126a-40de-4a94-a991-83484ae53588 Czech Republic (CZ)ed3aaa4e-f7ed-4ff5-9091-5b9bbf64baff Poland (PL)e31aa327-8751-4220-acf8-ac2ad2dce84f Netherlands (NL)06015e66-7c59-4494-87f8-823390710a41 Estonia (EE)7f23468b-ed2d-4492-8884-4cb7e517ff35 Greece (GR)bb961d53-be35-4a85-a28a-0f094663aa25 Portugal (PT)2ad8ee10-39fd-43c8-97e9-21ddc85c68b1 Bulgaria (BG)f706cd52-7cec-47a5-8c17-2d234dc42e12 Sweden (SE)37ca9589-c1dd-4b56-a346-05bd14e3d7ec Poland (PL)13a61ffb-ee56-4476-b282-b9b55b0b4e02 France (FR)1b81910e-4ffe-4f91-afdc-4cad62210fbe Germany (DE)1de3d507-9595-474b-a1c4-bf68d8021cf2 Germany (DE)f9d6fac9-e0fb-4bf4-ae31-b57c219ae214 France (FR)d6228547-f0c9-4de2-a7df-0e30481009f7 Netherlands (NL)4394969b-7d81-47f8-b5d6-f892ff9a0635 Spain (ES)02cd8281-7560-410c-acae-070a9dbc1bb9 Netherlands (NL)
