ABB 1SDA068090R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

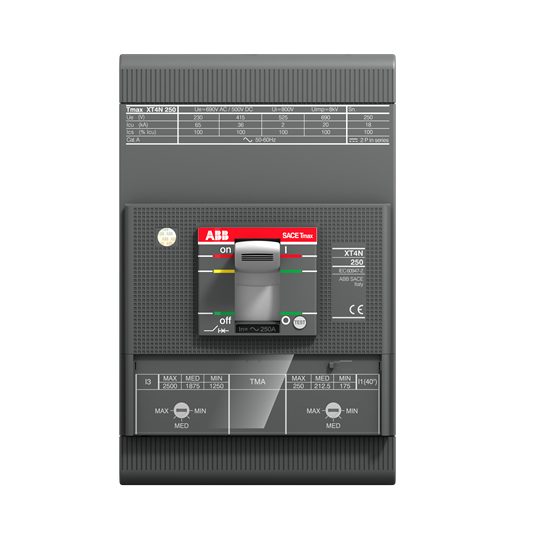

C.BREAKER TMAX XT4N 250 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 200 I3=1000...2000 AXT4N 250 TMA 200-2000 3p F F
ABB 1SDA068090R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH002230A1003
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 85..200 mm²
- Current Type
- AC/DC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 3
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 11.88 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 200 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Instantaneous Short-Circuit Current Setting (Ii)
- 1000…2000 A
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC750 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 36 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 36 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M8
- Release
- TMA
- Release Type
- TM
- RoHS Date
- null
- Setting Range
- 140...200 A
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- XT4
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 8 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 58.5 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2351
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 82.5 mm
- Product Net Height
- 160 mm
- Product Net Weight
- 2.253 kg
- Product Net Width
- 105 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1892
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 0f75806c-038e-427c-a419-1e619ead7330 Italy (IT)
- Simplified SCIP
- 80771390-3c90-4704-ba7b-7ad00bdcaaac Germany (DE)24f0072f-f737-47e8-bf8f-a7da542de573 France (FR)fa6bf96d-401d-4e5a-9037-3f1be0e99ff0 Netherlands (NL)2238a3b5-a625-4e86-a72f-b1a2bf518299 Spain (ES)59a70feb-bd3c-4c18-a39c-77dac537e6c3 Netherlands (NL)b08a9cad-9f06-4367-b311-d07225fb1ebd Netherlands (NL)a924a9af-9a13-428f-b70d-9c7c89090db7 Germany (DE)3d326f4b-0f76-4365-aad1-a6b5e227cc44 Sweden (SE)dc4ea025-3e43-44d4-a948-daf1de7163e0 Denmark (DK)47a697a1-294f-402c-9d6b-8d4bc72e3337 Germany (DE)1d33418a-b4bb-4ca0-ba0d-39dfaf977e6d Poland (PL)16d8165e-690a-4042-87c4-85f69f0b4288 Norway (NO)1c4ace83-d732-4906-9421-76fae14054e0 Finland (FI)0b84f289-8294-42b3-8d69-e269bfd1929a Netherlands (NL)0a328f25-806b-4442-b8b4-f6dc12bcbeda Croatia (HR)aaf0d27c-68f9-4a06-a505-2b477dfd0c30 Czech Republic (CZ)ef4bf7a7-a3f3-4488-a35d-8b9db53b0e18 Poland (PL)f164363d-7972-4af1-a7c9-0fca68892918 Netherlands (NL)47aab088-da02-4a97-a865-79f7b51aee06 Estonia (EE)454a9ac2-5efa-4740-9bbb-0b609138bccb Greece (GR)9343a443-38ba-4bc0-b403-83c6b57f3537 Portugal (PT)f0b014c5-5a87-4a28-a309-ba88ce1bf902 Bulgaria (BG)e400fc61-0699-47c7-ba49-0160152400d6 Sweden (SE)ef14ac71-e36e-44d0-b642-a2ef43214fbc Poland (PL)7e3f11d9-dead-45cc-9d62-4a150cee4a28 France (FR)04d02c11-98e0-49a2-9196-7e23a112b2f9 Germany (DE)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3641036
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- XT4NE3200BFF000XXX
