ABB 1SDA068069R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

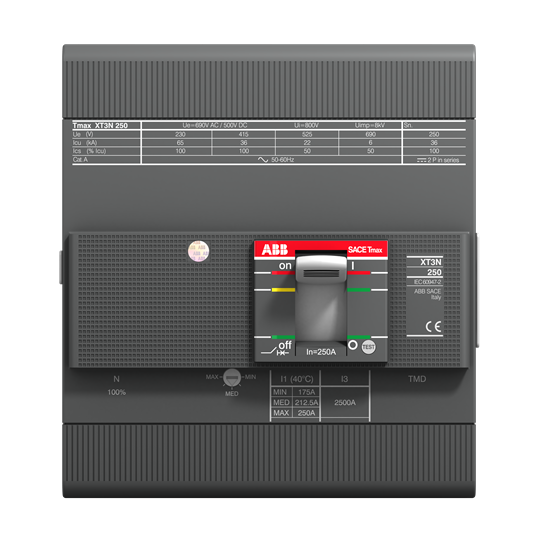

C.BREAKER TMAX XT3N 250 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 200-2000 A FULLY RATED NEUTRALXT3N 250 TMD 200-2000 4p F F InN=100%
ABB 1SDA068069R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001295R0483
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 85..192 mm²
- Current Type
- AC/DC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 4
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 13.2 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 200 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Instantaneous Short-Circuit Current Setting (Ii)
- 2000 A
- Rated Insulation Voltage (Ui)
- 800 V
- Rated Operational Voltage
- 690 V AC500 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 37.5 kA(230 V AC) 37.5 kA(240 V AC) 37.5 kA(380 V AC) 27 kA(415 V AC) 27 kA(440 V AC) 18.75 kA(500 V AC) 15 kA(525 V AC) 9.75 kA(690 V AC) 3.75 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 50 kA(230 V AC) 50 kA(240 V AC) 50 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 25 kA(500 V AC) 20 kA(525 V AC) 13 kA(690 V AC) 5 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 50 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M8
- Release
- TMD
- Release Type
- TM
- RoHS Date
- null
- Setting Range
- 140...200 A
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- XT3
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 8 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 60.5 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2350
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 70 mm
- Product Net Height
- 150 mm
- Product Net Weight
- 2.1 kg
- Product Net Width
- 140 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A2294
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 8c4f460c-5c0d-41ad-a7e9-12f9f039f2b3 Italy (IT)
- Simplified SCIP
- d8ee65dc-ad0e-4b5d-80c9-04e4739e1e76 Germany (DE)aeebded1-e22a-407d-855a-49c2ba1ed405 Sweden (SE)aa3e884f-8b19-4c79-9282-9494962cb6a9 Denmark (DK)acac8e29-8908-4270-b65a-9534dc1a80d1 Germany (DE)33e3fec6-e210-46a7-af60-66e9b017c869 Poland (PL)f5bd2133-4ad6-4697-a26f-ed09f98fc9a9 Norway (NO)19fd072b-6ee9-47bb-99cc-e48ff3e59560 Finland (FI)83dbbce6-4dc1-41a5-ae5e-66e03aa699b3 Netherlands (NL)8ae769d9-6e31-4a67-9f5a-29cf2cbea629 Netherlands (NL)460c076b-f5d9-41f4-aa7d-1fbd1f8a5d62 Croatia (HR)3bbe34a5-20ff-4326-8f96-2cbea3ffa60b Czech Republic (CZ)96276717-eb8f-4d0b-ab80-1e711f18e943 Poland (PL)f768f7b0-3b82-4d33-9ddc-1b5745e76fe6 Netherlands (NL)d0aafe7c-d47a-4eb1-823a-4ec1f764907a Estonia (EE)63dd3660-5542-4381-9b4c-bf27369ce6a5 Greece (GR)b1e1bf05-3832-46a0-880a-049f8a0e69c4 Portugal (PT)4fad311b-d1ca-42d8-91a9-d80bbdc221f5 Bulgaria (BG)eb289746-7671-4caf-a1ff-47713ce74aae Sweden (SE)88ab3892-a3fb-46db-abd7-9a05f2efdc8c Poland (PL)4fabb48e-d088-4220-b301-7423001f28e3 France (FR)c58550ca-bfb8-41ca-a707-efa98b5d5223 Germany (DE)707369a8-966a-4e39-8c0f-043a35073236 Germany (DE)a960ba21-1447-43a4-93d5-fcd7763a2874 France (FR)9658eb56-033b-45f7-8f6c-3ca33bf08ea4 Netherlands (NL)0ab5b722-1d9d-47e8-975a-1fd3a89a2b59 Spain (ES)39ba492a-8054-46d9-8b8b-0994015d33ec Netherlands (NL)
