ABB 1SDA068067R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

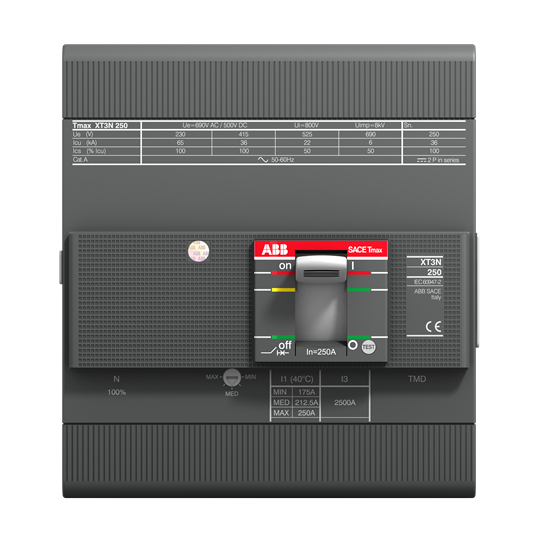

C.BREAKER TMAX XT3N 250 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 125-1250 A FULLY RATED NEUTRALXT3N 250 TMD 125-1250 4p F F InN=100%
ABB 1SDA068067R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001295R0483
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 85..192 mm²
- Current Type
- AC/DC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 4
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 6.6 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 125 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Instantaneous Short-Circuit Current Setting (Ii)
- 1250 A
- Rated Insulation Voltage (Ui)
- 800 V
- Rated Operational Voltage
- 690 V AC500 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 37.5 kA(230 V AC) 37.5 kA(240 V AC) 37.5 kA(380 V AC) 27 kA(415 V AC) 27 kA(440 V AC) 18.75 kA(500 V AC) 15 kA(525 V AC) 9.75 kA(690 V AC) 3.75 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 50 kA(230 V AC) 50 kA(240 V AC) 50 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 25 kA(500 V AC) 20 kA(525 V AC) 13 kA(690 V AC) 5 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 50 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M8
- Release
- TMD
- Release Type
- TM
- Setting Range
- 87.5...125 A
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- XT3
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 8 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 60.5 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2350
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 70 mm
- Product Net Height
- 150 mm
- Product Net Weight
- 2.1 kg
- Product Net Width
- 140 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A2294
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- c8709ec6-c4d5-48d4-a4f1-73b0ad28ff28 Italy (IT)
- Simplified SCIP
- e8418463-21bb-4646-9320-317496bc77c7 Germany (DE)8b2aa564-3ff3-4d7b-9a63-8777af9d8171 Sweden (SE)11aa80b9-b8f0-483b-b0e5-34e86b71601f Germany (DE)589e2b91-34a5-43ca-a9ec-b300f715fe70 Croatia (HR)6b1e6e20-3667-44ea-89cc-104f2b85cc99 Poland (PL)25e3beb3-26da-46d0-a5a9-1e990bcd7391 Norway (NO)1267c7bc-342b-4233-aee3-31fc6dd15d17 Finland (FI)e39f64fb-f61b-42a5-bd0b-6cc09bac755c Netherlands (NL)1def8801-a0df-4ecc-b285-1015470dc957 Germany (DE)5153fd07-da34-4170-b9ad-78d1866b3bdb Netherlands (NL)efb87256-30dd-4295-9547-b8154b1e7303 Czech Republic (CZ)e5afe46d-afdc-46b1-ac91-c1c2e9720bdf Poland (PL)5602b0a1-f2bd-4cc0-a7a5-b93548efcd46 Netherlands (NL)499d83df-a2fa-4335-9a28-eaa392a0986f Estonia (EE)45c1f002-9bef-4c95-8ec1-7cdbd583b762 Greece (GR)e553b893-d96f-4839-b919-b8bf5e416ba4 Denmark (DK)9db3e09e-7114-462a-9b18-bfe2839e19c0 Poland (PL)2d906c04-e981-4fb1-848f-496a7922adab France (FR)fddb75b5-f3bf-4a9d-93d5-2e298720f640 Germany (DE)834f078c-1cc5-4c3c-9a7a-9368526db7d2 France (FR)6ce50e92-801f-4ffc-be0c-fbf2f533352b Netherlands (NL)750bb180-e74a-4243-8bc9-1cb55d571613 Spain (ES)b585c2f4-04b8-4ba4-b860-02dec404a811 Netherlands (NL)5c99b231-75ad-4ce9-be38-a2f334d46d99 Portugal (PT)50d9662f-0e8c-4a77-b530-dd8df68e0856 Bulgaria (BG)33fd8c79-e65f-4fe5-955b-4673557ad7e4 Sweden (SE)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
