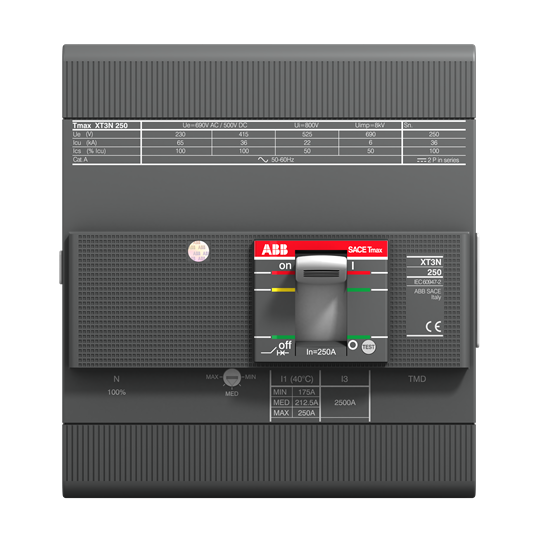

C.BREAKER TMAX XT3N 250 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 100-1000 AXT3N 250 TMD 100-1000 4p F F
ABB 1SDA068062R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001295R0483
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 85..192 mm²
- Current Type
- AC/DC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 4
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 5.6 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 100 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Instantaneous Short-Circuit Current Setting (Ii)
- 1000 A
- Rated Insulation Voltage (Ui)
- 800 V
- Rated Operational Voltage
- 690 V AC500 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 37.5 kA(230 V AC) 37.5 kA(240 V AC) 37.5 kA(380 V AC) 27 kA(415 V AC) 27 kA(440 V AC) 18.75 kA(500 V AC) 15 kA(525 V AC) 9.75 kA(690 V AC) 3.75 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 50 kA(230 V AC) 50 kA(240 V AC) 50 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 25 kA(500 V AC) 20 kA(525 V AC) 13 kA(690 V AC) 5 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 50 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M8
- Release
- TMD
- Release Type
- TM
- Setting Range
- 70...100 A
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- XT3
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 8 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 60.5 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2350
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 70 mm
- Product Net Height
- 150 mm
- Product Net Weight
- 2.1 kg
- Product Net Width
- 140 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A2294
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- a4196b59-5f9d-4e84-9f48-c88549ca307e Italy (IT)
- Simplified SCIP
- 9c94e115-8d13-4311-8104-e8d72c2ccaf7 Poland (PL)d7259335-9921-4745-8018-f447407bc9f1 France (FR)82dd661e-9823-447d-9225-58a994c0d4f1 Germany (DE)145af173-d16c-4e32-ada8-2c6af8f1e166 France (FR)cbf6be7e-aa92-4055-ad38-da29b52088f5 Netherlands (NL)8c419842-1c43-4f48-beaa-87dde133dd85 Spain (ES)f7897c5e-4b26-497e-a142-58ce871e5bf2 Netherlands (NL)4a3f777f-f823-45ca-8d27-e8b681cc288d Germany (DE)da078ed2-0cce-4a58-8cea-d0247c2fe93c Sweden (SE)54353e17-eb0f-450a-8ae9-878dd400cd8b Germany (DE)cc9a9bde-fa00-48df-a8b5-51201090fdf4 Croatia (HR)bc46b8c0-142e-4998-981a-e2833cc6b5ce Poland (PL)a3b2745f-f41c-466e-9ec6-5826c2a832d2 Norway (NO)b9c04f6f-25e6-4ad6-ab45-a43d353649d3 Finland (FI)62692d48-0fc3-4e8e-9f87-901377653109 Netherlands (NL)1d353a1d-eefa-4866-9dd9-7d12e56bfa10 Germany (DE)1ec657a4-3a8c-4393-a650-5715ceeff431 Netherlands (NL)d46dda15-2ca8-481e-ab19-8e4bdfb66c8d Czech Republic (CZ)38aa2b10-18fe-48cf-aec4-2404b34a46fc Poland (PL)efead7db-85ba-4535-92c8-d9293ad41639 Netherlands (NL)a02ec791-b15a-445e-bb49-f4e44a857153 Estonia (EE)c2d1d18b-4b8d-4572-b29f-43f4a8a00050 Greece (GR)8315a52a-ceb1-4d7e-98ff-f6c5b051173d Portugal (PT)c9b6e379-0d54-47e4-87e8-1681437434cf Bulgaria (BG)f7a5cd1f-7919-4633-87d0-b9b66d2a4221 Sweden (SE)88118757-e753-468b-89aa-baa6ab0adc70 Denmark (DK)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3641007
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- XT3NE4100AFF000XXX
